Store / Pads / 4812

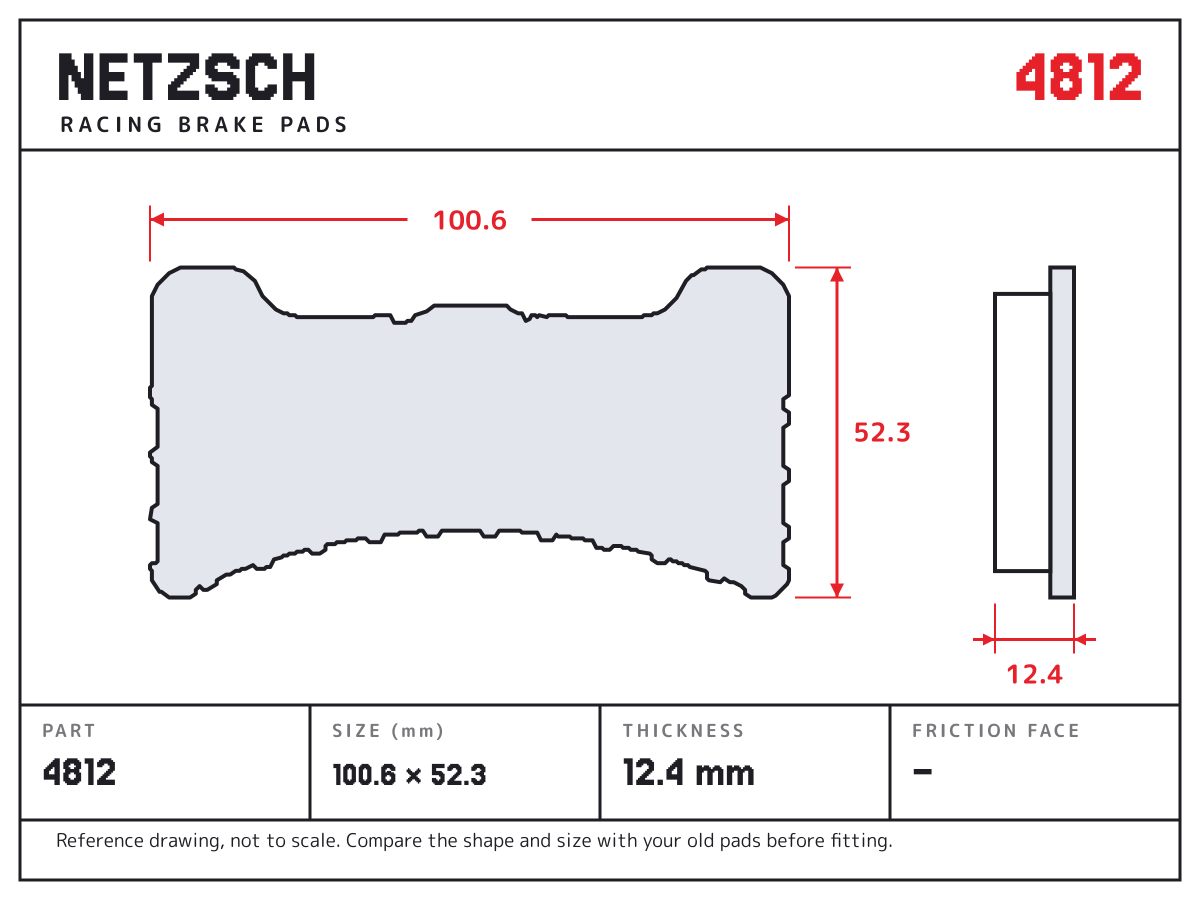

NETZSCH 4812 brake pad drawing: 100.6 × 52.3 mm, 12.4 mm thick

4812

100.6 x 52.3 x 12.4 mm; Wilwood DPC56 Caliper; Wilwood Dynapro Lug Mount Low-Profile; Wilwood Forged Dynapro Lug Mount Low-Profile

Made to the Wilwood 4812 pad shape. Compare the outline and thickness with your old pads.

Pad shape: Wilwood 4812
Size: 100.6 × 52.3 mm
Thickness: 12.4 mm
Use: Race calipers

Formula

NE11Original Replacement Series · to 500°CN-oneOriginal Upgrade Series · to 500°CNF42High Performance Street Series · to 600°CNG50High Performance Street Racing · to 800°CNH65High Performance Racetrack Series · to 900°CNH70GT Formula Race Edition · to 1200°C

For carbon-ceramic discs

NC4Carbon Ceramic Entry SeriesNC6Carbon Ceramic Disc Series · to 600°CNC9Carbon Ceramic Race Series

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised

Request price

Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
DeliveryOptions and cost are shown at checkout for your address.
Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

Brand	Caliper	Notes
Wilwood	DPC56 Caliper	4812; 12.4 mm
Wilwood	Dynapro Lug Mount Low-Profile	4812; 12.4 mm
Wilwood	Forged Dynapro Lug Mount Low-Profile	4812; 12.4 mm
Wilwood	Forged Dynapro Lug Mount LP-Dust Seal	4812; 12.4 mm
Wilwood	Narrow Dynapro Radial Mount	4812; 12.4 mm

Always compare the shape and size with your old pads before you fit them.

Cross references

3 part numbers from other brands for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Wilwood: 4812
Winmax: WMP1748 · WMP1748-W3

Winmax WMP1748: WinmaX catalogue thicknesses

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

4812

Fits

Race calipers

Cross references

Nine formulas, one shape
