Store / Pads / 5310

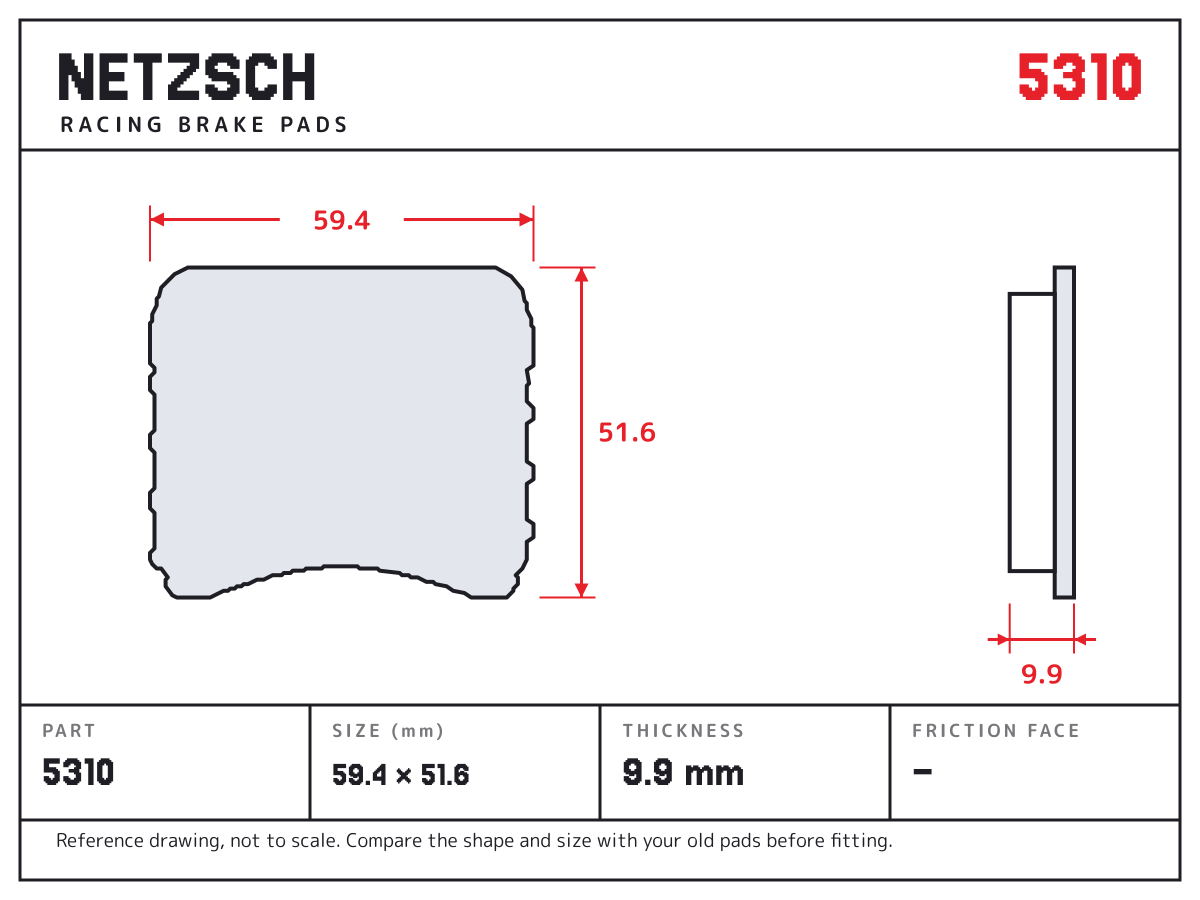

NETZSCH 5310 brake pad drawing: 59.4 × 51.6 mm, 9.9 mm thick

5310

59.4 x 51.6 x 9.9 mm; Wilwood WLD-19; Wilwood WLD-19/ST

Made to the Wilwood 5310 pad shape. Compare the outline and thickness with your old pads.

Pad shape: Wilwood 5310
Size: 59.4 × 51.6 mm
Thickness: 9.9 mm
Use: Race calipers

Formula

NE11Original Replacement Series · to 500°CN-oneOriginal Upgrade Series · to 500°CNF42High Performance Street Series · to 600°CNG50High Performance Street Racing · to 800°CNH65High Performance Racetrack Series · to 900°CNH70GT Formula Race Edition · to 1200°C

For carbon-ceramic discs

NC4Carbon Ceramic Entry SeriesNC6Carbon Ceramic Disc Series · to 600°CNC9Carbon Ceramic Race Series

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised

Request price

Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
DeliveryOptions and cost are shown at checkout for your address.
Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

Brand	Caliper	Notes
Wilwood	WLD-19	5310; 9.9 mm
Wilwood	WLD-19/ST	5310; 9.9 mm

Always compare the shape and size with your old pads before you fit them.

Cross references

1 part number from another brand for the same pad shape. Use it to check the fit; it does not mean the pads are the same.

Wilwood: 5310

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

5310

Fits

Race calipers

Cross references

Nine formulas, one shape
