Store / Pads / 6712

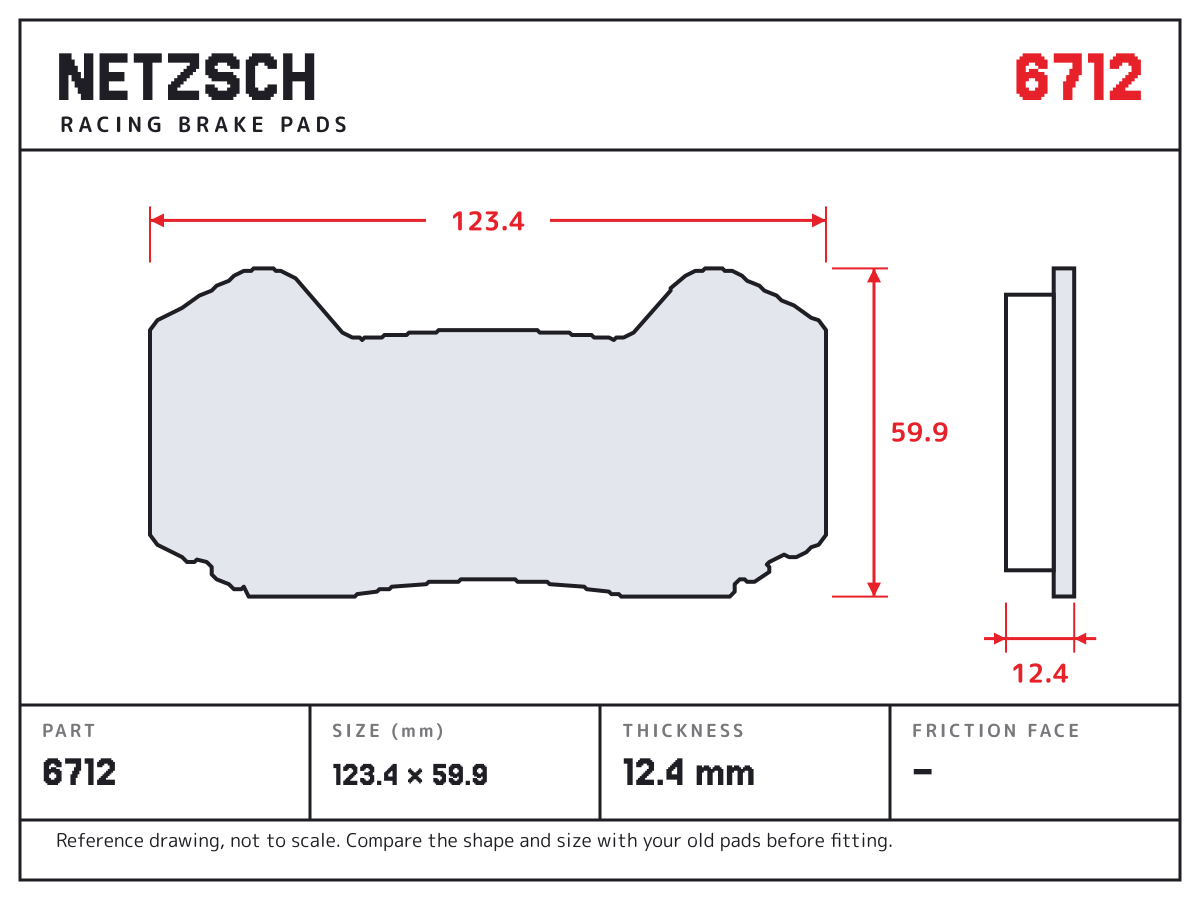

NETZSCH 6712 brake pad drawing: 123.4 × 59.9 mm, 12.4 mm thick

6712

123.4 x 59.9 x 12.4 mm; Wilwood Dynapro Six Lug Mount; Wilwood Forged Dynapro 6A Lug Mount

Made to the Wilwood 6712 pad shape. Compare the outline and thickness with your old pads.

Pad shape: Wilwood 6712
Size: 123.4 × 59.9 mm
Thickness: 12.4 mm
Use: Race calipers

Formula

NE11Original Replacement Series · to 500°CN-oneOriginal Upgrade Series · to 500°CNF42High Performance Street Series · to 600°CNG50High Performance Street Racing · to 800°CNH65High Performance Racetrack Series · to 900°CNH70GT Formula Race Edition · to 1200°C

For carbon-ceramic discs

NC4Carbon Ceramic Entry SeriesNC6Carbon Ceramic Disc Series · to 600°CNC9Carbon Ceramic Race Series

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised

Request price

Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
DeliveryOptions and cost are shown at checkout for your address.
Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

Brand	Caliper	Notes
Wilwood	Dynapro Six Lug Mount	6712; 12.4 mm
Wilwood	Forged Dynapro 6A Lug Mount	6712; 12.4 mm

Always compare the shape and size with your old pads before you fit them.

Cross references

6 part numbers from other brands for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Wilwood: 6712
Winmax: WMP1450 · WMP1450-W3 · WMP1450-W5 · WMP1450-W6.5 · WMP1450-W7

Winmax WMP1450: WinmaX catalogue thicknesses

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

6712

Fits

Race calipers

Cross references

Nine formulas, one shape
