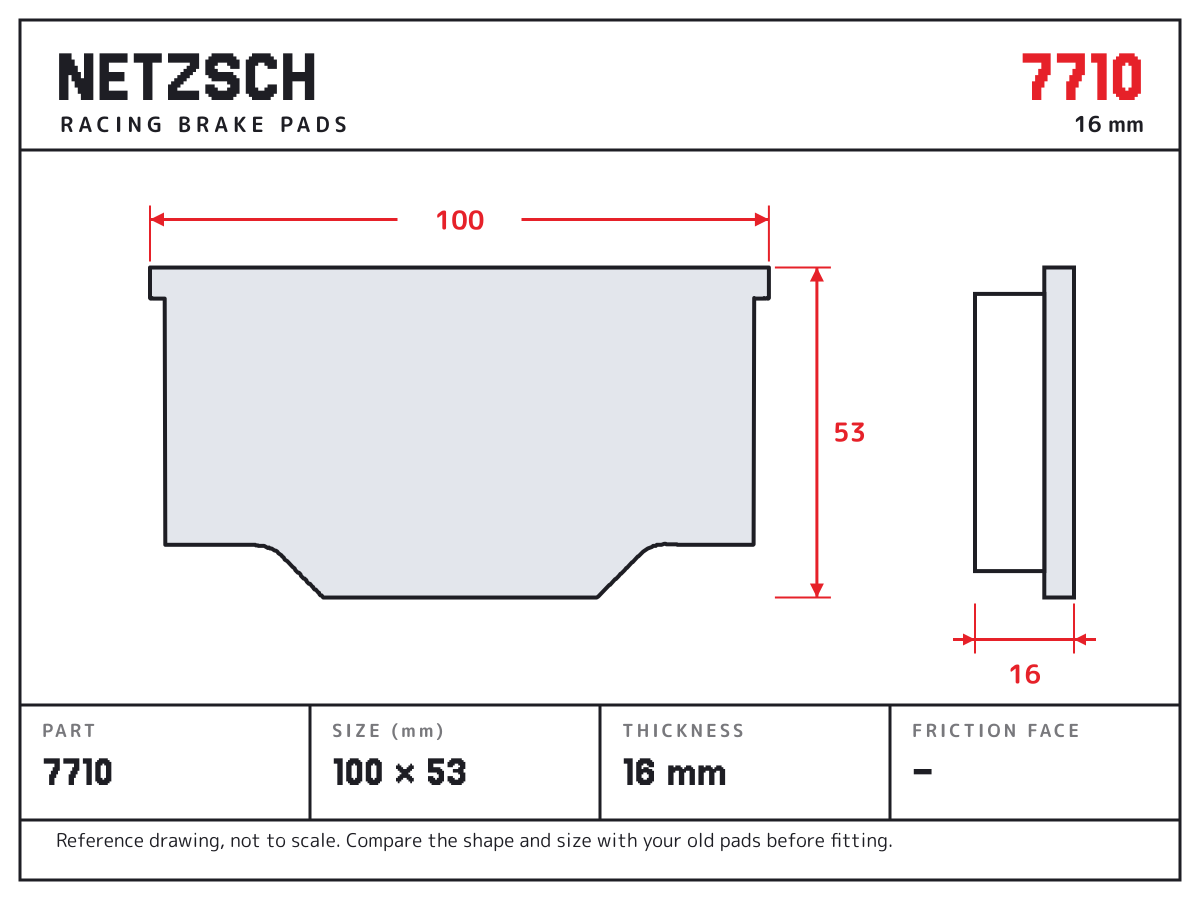

NETZSCH 7710 brake pad drawing: 100 × 53 mm, 16 mm thick

7710

100 x 53 x 16 mm; Lucas Girling AR MK5; Alcon A type; Lucas / Girling AR 5

Made to the PFC 7710 pad shape. Compare the outline and thickness with your old pads.

Pad shape: PFC 7710
Size: 100 × 53 mm
Thickness: 16 mm / 17 mm / 20 mm
Use: Race calipers
Also known as: Ferodo FRP101

Formula

NE11Original Replacement Series · to 500°CN-oneOriginal Upgrade Series · to 500°CNF42High Performance Street Series · to 600°CNG50High Performance Street Racing · to 800°CNH65High Performance Racetrack Series · to 900°CNH70GT Formula Race Edition · to 1200°C

For carbon-ceramic discs

NC4Carbon Ceramic Entry SeriesNC6Carbon Ceramic Disc Series · to 600°CNC9Carbon Ceramic Race Series

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised

Request price

Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
DeliveryOptions and cost are shown at checkout for your address.
Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

Brand	Caliper	Notes
Lucas Girling	AR MK5	FRP101; AR MK5
Alcon	A type	17mm
Lucas / Girling	AR 5	17 mm
Lucas / Girling	AR 5	20 mm

Always compare the shape and size with your old pads before you fit them.

Cross references

7 part numbers from other brands for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Ferodo: FRP101
Alcon: 3435
Pagid Racing: 1192
PFC: 7710
Winmax: WMP798 · WMP798-20-W6.5 · WMP798-W6.5

Winmax WMP798: WinmaX catalogue thicknesses 20.0 mm

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

7710

Fits

Race calipers

Cross references

Nine formulas, one shape
