Store / Pads / B0816

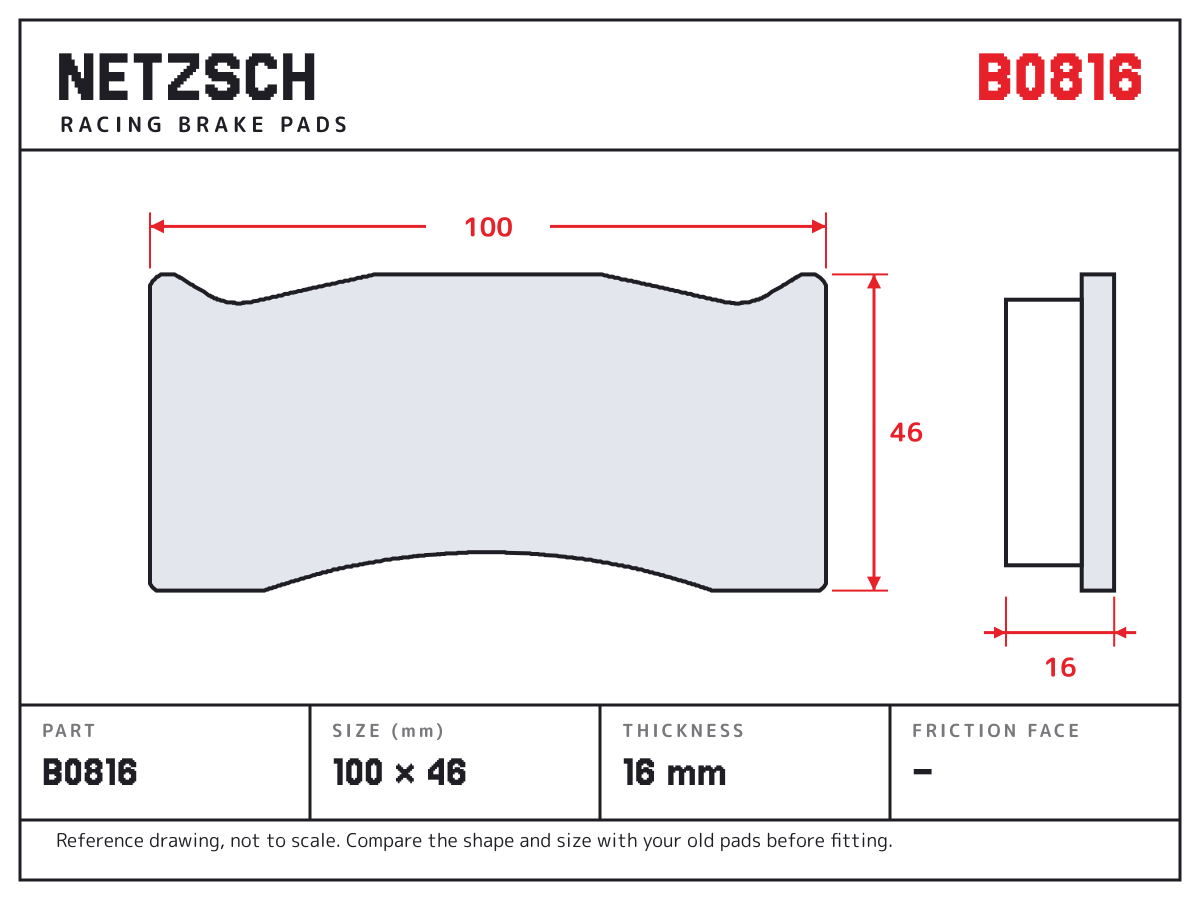

NETZSCH B0816 brake pad drawing: 100 × 46 mm, 16 mm thick

B0816

100 x 46 x 16 mm; Brembo B08 family; Brembo Brembo F3 System (prior 2007)

Made to the Brembo B0816 pad shape. Compare the outline and thickness with your old pads.

Pad shape: Brembo B0816
Size: 100 × 46 mm
Thickness: 16 mm
Use: Race calipers
Also known as: Brembo B0816 · Ferodo FRP3071

Formula

NE11Original Replacement Series · to 500°CN-oneOriginal Upgrade Series · to 500°CNF42High Performance Street Series · to 600°CNG50High Performance Street Racing · to 800°CNH65High Performance Racetrack Series · to 900°CNH70GT Formula Race Edition · to 1200°C

For carbon-ceramic discs

NC4Carbon Ceramic Entry SeriesNC6Carbon Ceramic Disc Series · to 600°CNC9Carbon Ceramic Race Series

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised

Request price

Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
DeliveryOptions and cost are shown at checkout for your address.
Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

Brand	Caliper	Notes
Brembo	B08 family	FRP3071; B08 family - Th. 16mm
Brembo	Brembo F3 System (prior 2007)	FRP3071; Brembo F3 System (prior 2007) - Th. 16mm

Always compare the shape and size with your old pads before you fit them.

Cross references

6 part numbers from other brands for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Brembo: B0816
Ferodo: FRP3071
Hawk: HB351
Pagid Racing: 8000
PFC: 7736
Wilwood: 7616

Wilwood 7616: Official PFC manufacturer-number lookup identifies this PFC shape drawing; 16 mm pad.

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

B0816

Fits

Race calipers

Cross references

Nine formulas, one shape
