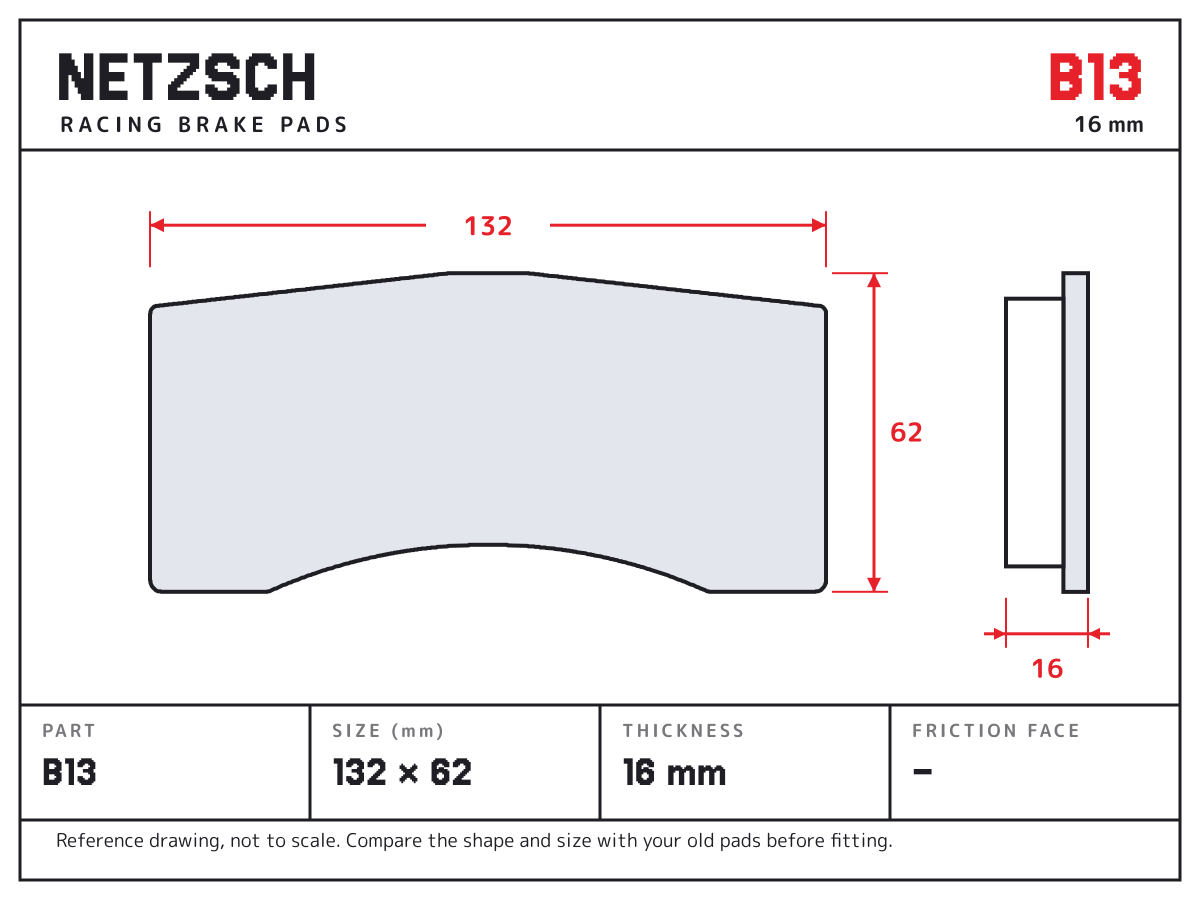

NETZSCH B13 brake pad drawing: 132 × 62 mm, 16 mm thick
NETZSCH B13 brake pads in NH65, pixel art
The lab boy dressed for NH65
The NH65 pad box

B13

132 x 62 x 16 mm; Brembo XA2E6A3/A4; Brembo XA2E703/04; Brembo XA2E713/14

Made to the Brembo B13 pad shape. Compare the outline and thickness with your old pads.

Pad shape
Brembo B13
Size
132 × 62 mm
Thickness
16 mm / 18 mm / 20 mm / 22 mm / 25 mm / 26.5 mm
Use
Race calipers
Also known as
Brembo B13 · Ferodo FRP302
Formula

For carbon-ceramic discs

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised
Request price

  • Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
  • DeliveryOptions and cost are shown at checkout for your address.
  • Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Aston Martin

ModelChassisYearsAxleDetails
Vantage GT3 V12---2013-2014 matched by part number
Vantage GT3 V12---2018- matched by part number
Vantage GT3 V12 Endurance Caliper---2015-2017 matched by part number
Vantage GT3 V12 Sprint Caliper---2015-2017 matched by part number
Vantage GT4 V8---2018- matched by part number
Vantage GT4 V8---2011-2017 matched by part number
Vantage V8 GTE---Alcon 2012-2017 matched by part number
Vantage V8 GTE---Brembo 2018- matched by part number

Audi

ModelChassisYearsAxleDetails
R8---R8 GT4 2017- matched by part number
R8---R8 LMS Ultra GT3 (race car) matched by part number
R8---R8 LMS GT2 (race car) 2020- matched by part number
R8---R8 LMS GT3 (race car) 2016- matched by part number

Bentley

ModelChassisYearsAxleDetails
Continental---GT3 Race Car 14-17 matched by part number
Continental---GT3 Race Car 18- matched by part number

Chevrolet

ModelChassisYearsAxleDetails
Callaway---Z06.R GT3 (race car) 16 - matched by part number
Corvette---C7 GT3 (Callaway Race Car) 15 - matched by part number

Ferrari

ModelChassisYearsAxleDetails
458---GTE (race car) 14 - 16 matched by part number
458---Italia GT3 (race car) 13 - 16 matched by part number
488---GT3 (race car) 16 - matched by part number

Ford

ModelChassisYearsAxleDetails
Fiesta---R2 Tarmac Rally Spec 2016 matched by part number

Honda

ModelChassisYearsAxleDetails
NSX---GT3 Race Car 2017 - matched by part number

Lamborghini

ModelChassisYearsAxleDetails
Gallardo---GT3 (2014) matched by part number
Huracan---Trofeo (2015-) matched by part number
Huracan---GT3 (2015-) matched by part number

Lexus

ModelChassisYearsAxleDetails
RC-F---GT3 Race car matched by part number

McLaren

ModelChassisYearsAxleDetails
570S---GT4 Race Car (Alcon) matched by part number
650S---GT3 Race Car (AP) matched by part number
720S---GT3 Race Car (Alcon) matched by part number

Mercedes Benz

ModelChassisYearsAxleDetails
AMG GT GT3 (race car)---16 - matched by part number
AMG GT4 (race car)---17 - matched by part number

Peugeot

ModelChassisYearsAxleDetails
208---Rally4 (2020-) matched by part number

Porsche

ModelChassisYearsAxleDetails
911 / 991---RSR GTE (race car) ( 17 - ) matched by part number
911 / 991.2---GT3 R (race car) ( 19 - ) matched by part number
911 / 991.2---GT2 RS Clubsport (race car) ( 19 - ) matched by part number
911 / 996---GT3R, GT3 RS (race car) ( 00 - 05 ) matched by part number
911 / 997---GT3 Cup S ( 08 - 12 ) matched by part number
911 / 997---GT3 Cup Grand Am spec. ( 07 - 12 ) matched by part number
911 / 997---GT3 R (race car, normal caliper) ( 07 - 12 ) matched by part number
911 / 997---GT3 R (race car, endurace caliper) ( 07 - 12 ) matched by part number
911 / 997---GT3 RSR ( 07 - 12 ) matched by part number

Race calipers

BrandCaliperNotes
BremboXA2E6A3/A4B13; XA2E6A3/A4 (16mm)
BremboXA2E703/04B13; XA2E703/04 (25mm; 26,5mm)
BremboXA2E713/14B13; XA2E713/14 (25mm; 26,5mm)
BremboXA74613/14B13; XA74613/14 (≤25mm)
BremboXA83013/14B13; XA83013/14 (26,5mm)
BremboXA95823/24B13; XA95823/24 (25mm)
BremboXA95833/34B13; XA95833/34 (25mm)
BremboXB0L213/14B13; XB0L213/14 (26,5mm)
BremboXB0L253/54B13; XB0L253/54 (26,5mm)
BremboXB15773/74B13; XB15773/74 (22mm)
BremboXB4P421/22B13; XB4P421/22 (≤26,5mm)
BremboXB4P461/62B13; XB4P461/62 (≤26,5mm)
BremboXB4P471/72B13; XB4P471/72 (≤26,5mm)
BremboXB8GU73/74B13; XB8GU73/74 (25mm)
BremboXB8GU77/78B13; XB8GU77/78 (25mm)
BremboXC2J371/72B13; XC2J371/72 (≤26,5mm)
BremboXA2.E7.03/04B13; max pad 25 - 26,5 mm; 4 piston; GT
BremboXA8.30.13/14B13; max pad 26,5 mm; 4 piston; GT
BremboXB0.L2.13/14B13; max pad 26,5 mm; 4 piston; GT
BremboXB0.L2.53/54B13; max pad 26,5 mm; 4 piston; GT
BremboXB4.P4.61/62B13; max pad 26,5 mm; 4 piston; GT
BremboXB4.P4.71/72B13; max pad 26,5 mm; 4 piston; GT
BremboXA9.58.23/24B13; max pad 25 mm; 4 piston; Nascar
BremboXA9.58.33/34B13; max pad 25 mm; 4 piston; Nascar
Brembo07.5139.0FRP1077; 07.5139.0
BremboB13 familyFRP1077; B13 family - Th. 16mm
Brembox9.005.91FRP1077; x9.005.91 - Th. 16.0mm
Brembo07.5139.3FRP1078; 07.5139.3
Brembo20.4548.03FRP1078; 20.4548.03 - Th. 25.0mm
BremboB13 familyFRP1078; B13 family - Th. 25mm - 4 piston
Brembox9.060.51FRP1078; x9.060.51 - Th. 25.0mm
Brembo07.5139.6FRP302; 07.5139.6
AlconPNF4441X723FRP1077; PNF4441X723
AlconB typeFRP302; B type - Th. 20.0mm
AlconPNF4441X634FRP302; PNF4441X634
AlconPNF4441X728FRP302; PNF4441X728
AlconPNF4441X737FRP302; PNF4441X737
AlconPNF4441X754FRP302; PNF4441X754
AlconB typeFRP1078; B type - Th. 25.0mm
AlconCRBxxx (4441) B-Type16mm
AlconCAR68 (4423)16 mm
AlconCRBxxx (4441) B-Type18 mm
AlconB typeFRP3007; B type - Th. 18.0mm
RotoraFF4FRP1077; FF4
ColemanSeries III16 mm
AP RacingCP7480FRP1078; CP5846 / CP5847 / CP6070 / CP6071 / CP6270 / CP6271/CP7480; CP5846 / CP5847 / CP6070 / CP6071 / CP6270 / CP6271/CP7480
AP RacingCP5846FRP1078; CP5846 / CP5847 / CP6070 / CP6071 / CP6270 / CP6271/CP7480; CP5846 / CP5847 / CP6070 / CP6071 / CP6270 / CP6271/CP7480
AP RacingCP5847FRP1078; CP5846 / CP5847 / CP6070 / CP6071 / CP6270 / CP6271/CP7480; CP5846 / CP5847 / CP6070 / CP6071 / CP6270 / CP6271/CP7480
AP RacingCP6070FRP1078; CP5846 / CP5847 / CP6070 / CP6071 / CP6270 / CP6271/CP7480; CP5846 / CP5847 / CP6070 / CP6071 / CP6270 / CP6271/CP7480
AP RacingCP6071FRP1078; CP5846 / CP5847 / CP6070 / CP6071 / CP6270 / CP6271/CP7480; CP5846 / CP5847 / CP6070 / CP6071 / CP6270 / CP6271/CP7480
AP RacingCP6270FRP1078; CP5846 / CP5847 / CP6070 / CP6071 / CP6270 / CP6271/CP7480; CP5846 / CP5847 / CP6070 / CP6071 / CP6270 / CP6271/CP7480
AP RacingCP6271FRP1078; CP5846 / CP5847 / CP6070 / CP6071 / CP6270 / CP6271/CP7480; CP5846 / CP5847 / CP6070 / CP6071 / CP6270 / CP6271/CP7480

Always compare the shape and size with your old pads before you fit them. Rows marked “matched by part number” come from other brands' catalogues for a pad of the same shape and size.

Cross references

73 part numbers from other brands for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Brembo
B13 · B13.16.170 · 107.A469.04 · B13.16.330 · 147.A469.A7 · B13.16.350 · 147.A469.B1 · B13.16.360 · 147.A469.A4 · B13.20.340 · 147.A469.73 · B13.22.170 · 107.A469.18 · B13.22.340 · 147.A469.60 · B13.25.330 · 147.A469.B3 · B13.25.340 · 147.A469.39 · B13.25.350 · 147.A469.40 · B13.25.360 · 147.A469.G7 · B13.26.210 · 147.A469.G0 · B13.26.330 · 147.A469.A3 · B13.26.340 · 147.A469.42 · B13.26.350 · 147.A469.24 · 07.5139.07 · 07.5139.19 · B1316 · 07.5139.65 · 07.5139.69 · 07.5139.34 · 07.5139.81 · B1325
Ferodo
FRP1077 · FRP302 · FRP1078 · FRP3007
Alcon
PNF4441X723 · PNF4441X723.4 · PNF4441X753 · PNF4441X753S.4 · PNF4441X769.4 · PNF4441X728 · PNF4441X728.4 · PNF4441X754 · PNF4441X754.4 · PNF4441X757.4 · 4441
Hawk
HB105 · HB208
Pagid Racing
1595 · 1607 · 1674
PFC
7700.16 · 7700 · 7700.20 · 7700.25 · 7700.18
Winmax
WMP813 · WMP813-16-W3 · WMP813-16-W5 · WMP813-16-W6.5 · WMP813-17-W4 · WMP813-18-W5 · WMP813-20-WR10 · WMP813-22-W6.5 · WMP813-25-W5

Hawk HB105: Original table entry HB105 0,62

PFC 7700: Base shape of 7700.20

Winmax WMP813: WinmaX catalogue thicknesses 16.0 mm, 17.0 mm, 18.0 mm, 20.0 mm, 22.0 mm, 25.0 mm

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

Nine formulas, one shape

Every NETZSCH formula is made in the B13 shape: from the quiet NE11 for the commute to NH70 for GT racing. NC4, NC6 and NC9 are for carbon-ceramic discs.

NE11 brake padsNE11Original Replacement Series, to 500°CN-one brake padsN-oneOriginal Upgrade Series, to 500°CNF42 brake padsNF42High Performance Street Series, to 600°CNG50 brake padsNG50High Performance Street Racing, to 800°CNH65 brake padsNH65High Performance Racetrack Series, to 900°CNH70 brake padsNH70GT Formula Race Edition, to 1200°CNC4 brake padsNC4Carbon Ceramic Entry Series · Data coming soonNC6 brake padsNC6Carbon Ceramic Disc Series, to 600°CNC9 brake padsNC9Carbon Ceramic Race Series · Data coming soonThe lab boy with his flaskCompareSeven tested formulas side by side, and the formula battle
