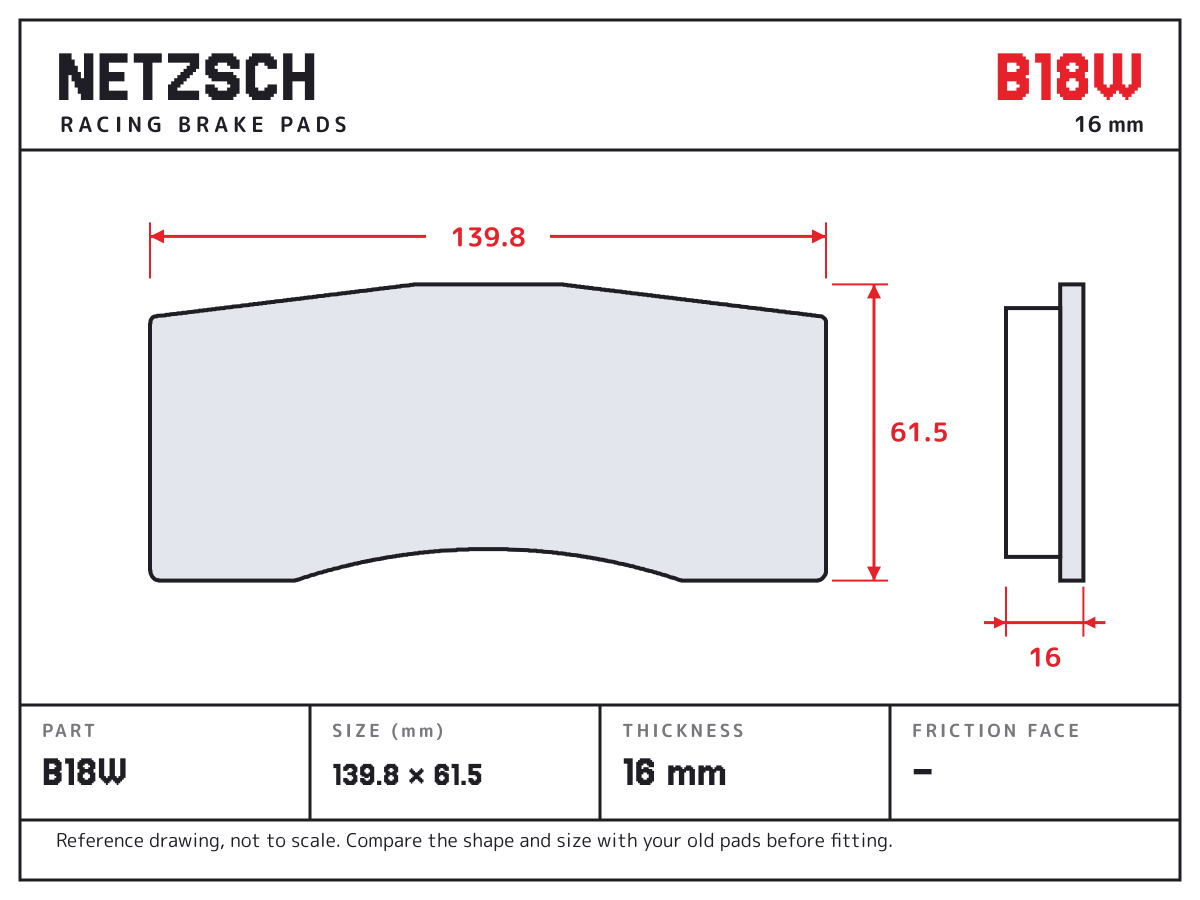

NETZSCH B18W brake pad drawing: 139.8 × 61.5 mm, 16 mm thick
NETZSCH B18W brake pads in NH65, pixel art
The lab boy dressed for NH65
The NH65 pad box

B18W

139.8 x 61.5 x 16 mm; Brembo XA4C613/14; Brembo XA4D301/02; Brembo XA5T001/02

Made to the Brembo B18W pad shape. Compare the outline and thickness with your old pads.

Pad shape
Brembo B18W
Size
139.8 × 61.5 mm
Thickness
16 mm / 17 mm / 20 mm / 25 mm / 26 mm / 30 mm
Use
Race calipers
Also known as
Brembo B18W
Formula

For carbon-ceramic discs

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised
Request price

  • Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
  • DeliveryOptions and cost are shown at checkout for your address.
  • Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

BrandCaliperNotes
BremboXA4C613/14B18W; XA4C613/14 (≤30mm)
BremboXA4D301/02B18W; XA4D301/02 (25mm)
BremboXA5T001/02B18W; XA5T001/02 (17,5mm)
BremboXA5T003/04B18W; XA5T003/04 (17,5mm)
BremboXA5T031/32B18W; XA5T031/32 (17,5mm)
BremboXA5T033/34B18W; XA5T033/34 (17,5mm)
BremboXA5T041/42B18W; XA5T041/42 (17,5mm)
BremboXA5T043/44B18W; XA5T043/44 (17,5mm)
BremboXA9Y653/54B18W; XA9Y653/54 (17,5mm)
BremboXB0F313/14B18W; XB0F313/14 (30mm;32mm)
BremboXB10501/02B18W; XB10501/02 (≤25mm; ≤26,5mm)
BremboXB10511/12B18W; XB10511/12 (≤25mm; ≤26,5mm)
BremboXB1E701/02B18W; XB1E701/02 (≤20mm)
BremboXB1E703/04B18W; XB1E703/04 (≤20mm)
BremboXB1E711/12B18W; XB1E711/12 (≤20mm)
BremboXB1E713/14B18W; XB1E713/14 (≤20mm)
BremboXB1E721/22B18W; XB1E721/22 (≤20mm)
BremboXB1E723/24B18W; XB1E723/24 (≤20mm)
BremboXB1E731/32B18W; XB1E731/32 (≤20mm)
BremboXB1E733/34B18W; XB1E733/34 (≤20mm)
BremboXB3B503/04B18W; XB3B503/04 (≤20mm)
BremboXB44243/44B18W; XB44243/44 (16mm)
BremboXB66043/44B18W; XB66043/44 (16mm)
BremboXB82301B18W; XB82301 (16mm)
BremboXB89401/02B18W; XB89401/02 (16mm)
BremboXC04101/02B18W; XC04101/02 (16mm)
BremboXC0J441/42B18W; XC0J441/42 (17mm)
BremboXC0J451/52B18W; XC0J451/52 (17mm)
BremboXC3N501/02B18W; XC3N501/02 (≤20mm)
BremboXB6.60.43/44B18W; max pad 16 mm; 4 piston; Rally

Always compare the shape and size with your old pads before you fit them.

Cross references

25 part numbers from another brand for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Brembo
B18W · B18W.25.330 · 147.A469.W0 · B18W.25.340 · 147.A469.W1 · B18W.25.350 · 147.A469.W2 · B18W.25.360 · 147.A469.W7 · B18W.26.330 · 147.A469.W8 · B18W.26.340 · 147.A469.W9 · B18W.26.350 · 147.A469.Y0 · B18W.26.360 · 147.A469.Y1 · B18W.16.330 · 147.A469.W3 · B18W.16.340 · 147.A469.W4 · B18W.16.350 · 147.A469.W5 · B18W.16.360 · 147.A469.W6

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

Nine formulas, one shape

Every NETZSCH formula is made in the B18W shape: from the quiet NE11 for the commute to NH70 for GT racing. NC4, NC6 and NC9 are for carbon-ceramic discs.

NE11 brake padsNE11Original Replacement Series, to 500°CN-one brake padsN-oneOriginal Upgrade Series, to 500°CNF42 brake padsNF42High Performance Street Series, to 600°CNG50 brake padsNG50High Performance Street Racing, to 800°CNH65 brake padsNH65High Performance Racetrack Series, to 900°CNH70 brake padsNH70GT Formula Race Edition, to 1200°CNC4 brake padsNC4Carbon Ceramic Entry Series · Data coming soonNC6 brake padsNC6Carbon Ceramic Disc Series, to 600°CNC9 brake padsNC9Carbon Ceramic Race Series · Data coming soonThe lab boy with his flaskCompareSeven tested formulas side by side, and the formula battle
