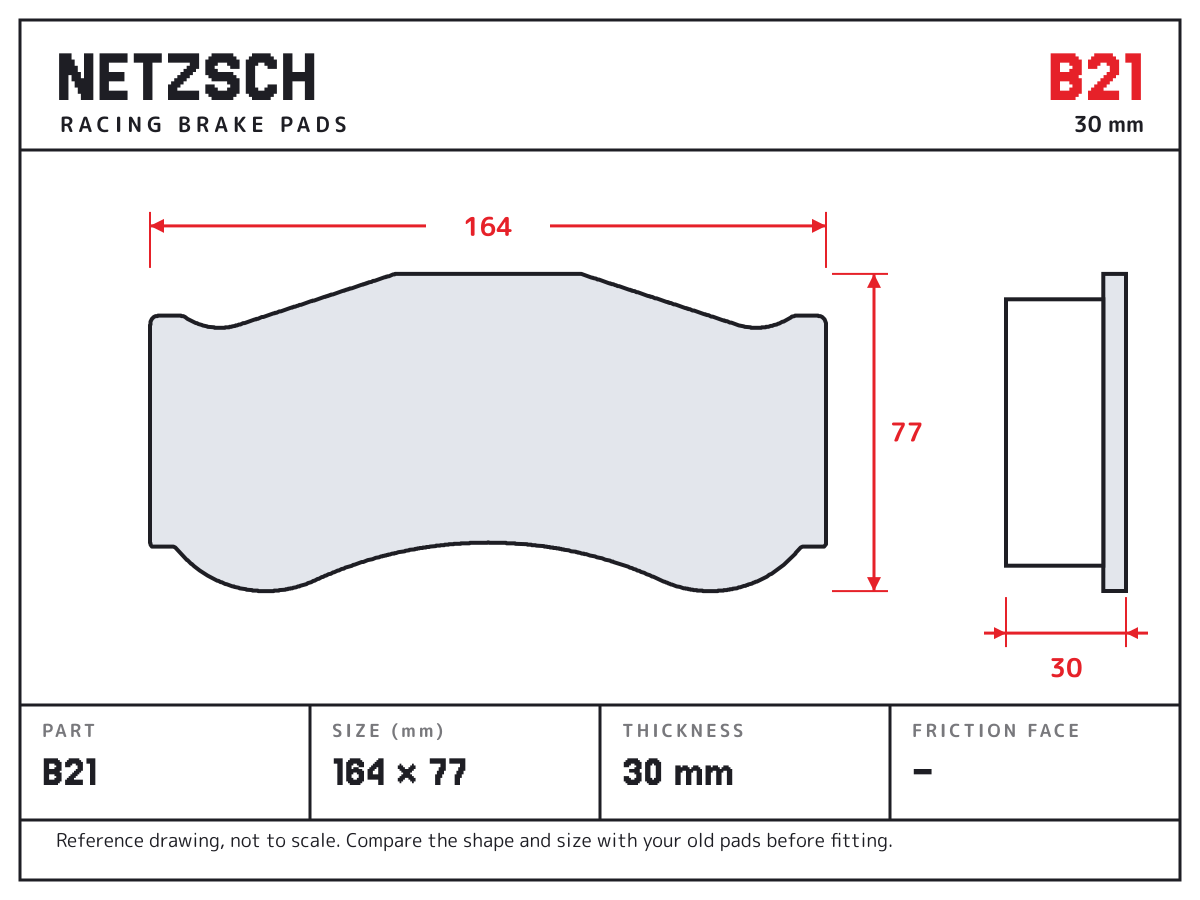

NETZSCH B21 brake pad drawing: 164 × 77 mm, 30 mm thick
NETZSCH B21 brake pads in NH65, pixel art
The lab boy dressed for NH65
The NH65 pad box

B21

164 x 77 x 30 mm; Brembo XA8N403/04; Brembo XB0F213/14; Brembo XB22211/12

Made to the Brembo B21 pad shape. Compare the outline and thickness with your old pads.

Pad shape
Brembo B21
Size
164 × 77 mm
Thickness
30 mm / 31 mm / 32 mm
Use
Race calipers
Also known as
Brembo B21 · Ferodo FRP3046
Formula

For carbon-ceramic discs

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised
Request price

  • Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
  • DeliveryOptions and cost are shown at checkout for your address.
  • Before fittingCompare the drawing, size and thickness with the pads you remove.

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

BrandCaliperNotes
BremboXA8N403/04B21; XA8N403/04 (≤32mm)
BremboXB0F213/14B21; XB0F213/14 (31mm;32mm)
BremboXB22211/12B21; XB22211/12 (30mm)
BremboXB2.22.11/12B21; max pad 30 mm; 6 piston; GT
BremboXB0.F2.13/14B21; max pad 31 - 32 mm; 6 piston; Nascar
Brembo07.7614.3FRP3046; 07.7614.3
BremboB21 familyFRP3046; B21 family - Th. 30mm

Always compare the shape and size with your old pads before you fit them.

Cross references

12 part numbers from other brands for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Brembo
B21 · B21.30.330 · 147.A469.D1 · B21.30.340 · 147.A469.37 · B21.30.360 · 147.A469.G3 · 07.7614.30 · 07.7614.31 · B2130
Ferodo
FRP3046
Pagid Racing
2017

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

Nine formulas, one shape

Every NETZSCH formula is made in the B21 shape: from the quiet NE11 for the commute to NH70 for GT racing. NC4, NC6 and NC9 are for carbon-ceramic discs.

NE11 brake padsNE11Original Replacement Series, to 500°CN-one brake padsN-oneOriginal Upgrade Series, to 500°CNF42 brake padsNF42High Performance Street Series, to 600°CNG50 brake padsNG50High Performance Street Racing, to 800°CNH65 brake padsNH65High Performance Racetrack Series, to 900°CNH70 brake padsNH70GT Formula Race Edition, to 1200°CNC4 brake padsNC4Carbon Ceramic Entry Series · Data coming soonNC6 brake padsNC6Carbon Ceramic Disc Series, to 600°CNC9 brake padsNC9Carbon Ceramic Race Series · Data coming soonThe lab boy with his flaskCompareSeven tested formulas side by side, and the formula battle
