Store / Pads / B30

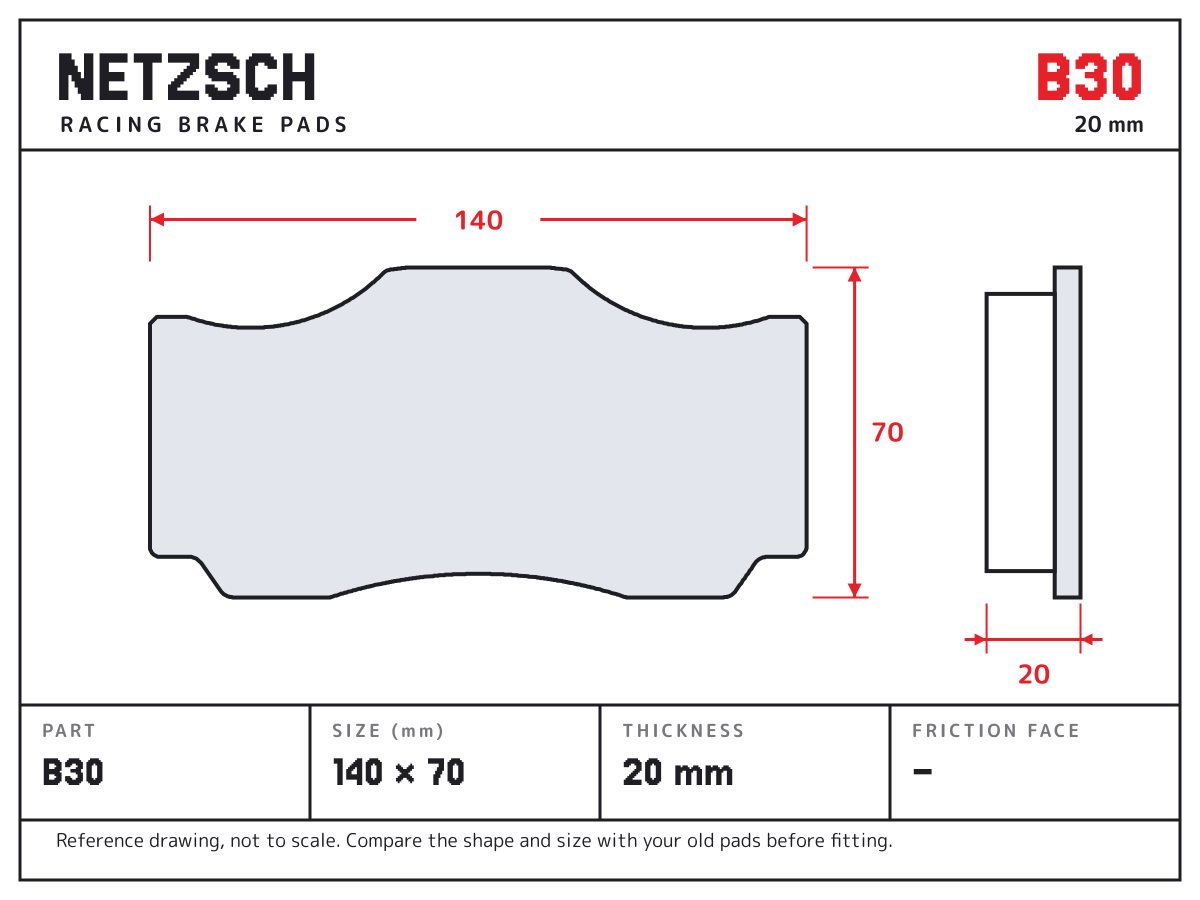

NETZSCH B30 brake pad drawing: 140 × 70 mm, 20 mm thick

B30

140 x 70 x 20 mm

Made to the Brembo B30 pad shape. Compare the outline and thickness with your old pads.

Pad shape: Brembo B30
Size: 140 × 70 mm
Thickness: 20 mm / 26 mm
Use: Race calipers
Also known as: Brembo B30

Formula

NE11Original Replacement Series · to 500°CN-oneOriginal Upgrade Series · to 500°CNF42High Performance Street Series · to 600°CNG50High Performance Street Racing · to 800°CNH65High Performance Racetrack Series · to 900°CNH70GT Formula Race Edition · to 1200°C

For carbon-ceramic discs

NC4Carbon Ceramic Entry SeriesNC6Carbon Ceramic Disc Series · to 600°CNC9Carbon Ceramic Race Series

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised

Request price

Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
DeliveryOptions and cost are shown at checkout for your address.
Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

We are still matching this shape to cars. Send us your car and we will check it: sales@netzschracing.com.

Always compare the shape and size with your old pads before you fit them.

Cross references

7 part numbers from another brand for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Brembo: B30 · B30.20.340 · 147.A469.E1 · B30.26.330 · 147.A469.D5 · B30.26.340 · 147.A469.D6

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

B30

Fits

Cross references

Nine formulas, one shape
