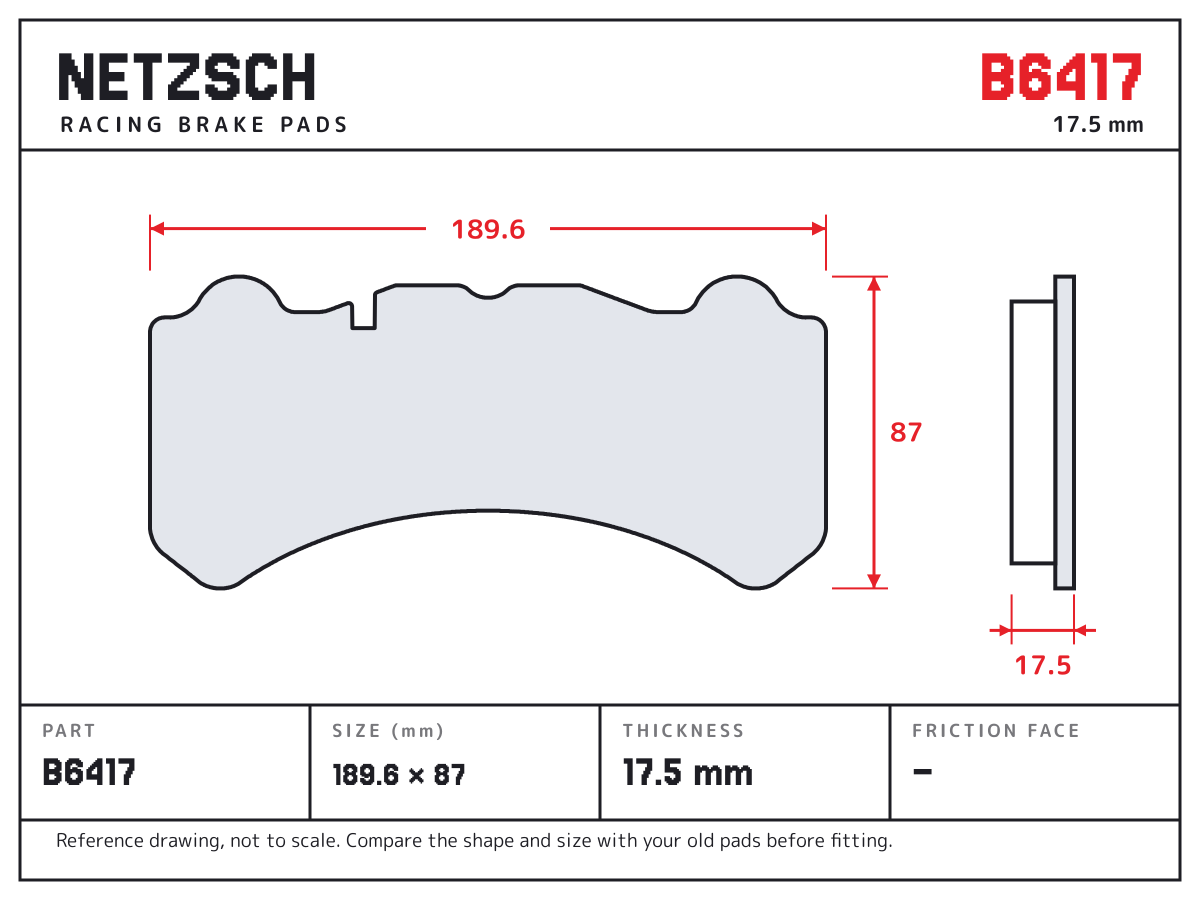

NETZSCH B6417 brake pad drawing: 189.6 × 87 mm, 17.5 mm thick

B6417

189.6 x 87 x 17.5 mm; Brembo 6 piston D58; Brembo B64 family

Made to the Brembo B6417 pad shape. Compare the outline and thickness with your old pads.

Pad shape: Brembo B6417
Size: 189.6 × 87 mm
Thickness: 17.5 mm / 17 mm
Use: Race calipers
Also known as: Brembo B6417 · Ferodo FRP3098

Formula

NE11Original Replacement Series · to 500°CN-oneOriginal Upgrade Series · to 500°CNF42High Performance Street Series · to 600°CNG50High Performance Street Racing · to 800°CNH65High Performance Racetrack Series · to 900°CNH70GT Formula Race Edition · to 1200°C

For carbon-ceramic discs

NC4Carbon Ceramic Entry SeriesNC6Carbon Ceramic Disc Series · to 600°CNC9Carbon Ceramic Race Series

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised

Request price

Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
DeliveryOptions and cost are shown at checkout for your address.
Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

Brand	Caliper	Notes
Brembo	6 piston D58	FRP3098; 6 piston D58
Brembo	B64 family	FRP3098; B64 family - Th. 17mm

Always compare the shape and size with your old pads before you fit them.

Cross references

7 part numbers from other brands for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Brembo: 07.9551.13 · 07.B314.59 (Th 16.8) · B6417 · XA5.71.L2 · XA5.71.L5-L6
Ferodo: FRP3098
Pagid Racing: 8062

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.
