Store / Pads / B6517

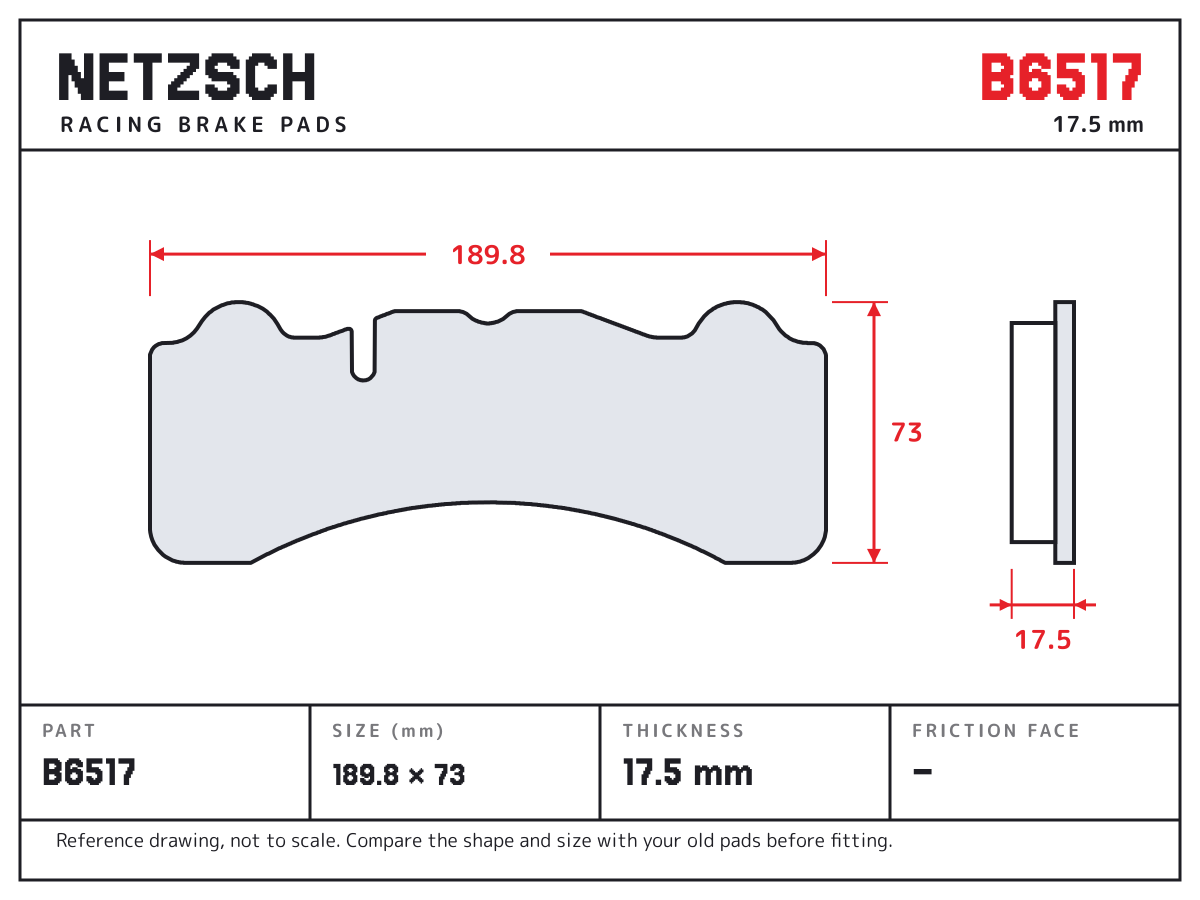

NETZSCH B6517 brake pad drawing: 189.8 × 73 mm, 17.5 mm thick

B6517

189.8 x 73 x 17.5 mm; Brembo 6 piston D48; Brembo B65 family

Made to the Brembo B6517 pad shape. Compare the outline and thickness with your old pads.

Pad shape: Brembo B6517
Size: 189.8 × 73 mm
Thickness: 17.5 mm / 17 mm
Use: Race calipers
Also known as: Brembo B6517 · Ferodo FRP3099

Formula

NE11Original Replacement Series · to 500°CN-oneOriginal Upgrade Series · to 500°CNF42High Performance Street Series · to 600°CNG50High Performance Street Racing · to 800°CNH65High Performance Racetrack Series · to 900°CNH70GT Formula Race Edition · to 1200°C

For carbon-ceramic discs

NC4Carbon Ceramic Entry SeriesNC6Carbon Ceramic Disc Series · to 600°CNC9Carbon Ceramic Race Series

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised

Request price

Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
DeliveryOptions and cost are shown at checkout for your address.
Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

Brand	Caliper	Notes
Brembo	6 piston D48	FRP3099; 6 piston D48
Brembo	B65 family	FRP3099; B65 family - Th. 17mm

Always compare the shape and size with your old pads before you fit them.

Cross references

5 part numbers from other brands for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Brembo: 07.B314.58 · B6517 · XA5.71.M2
Ferodo: FRP3099
Pagid Racing: 8061

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

B6517

Fits

Race calipers

Cross references

Nine formulas, one shape
