Store / Pads / CP2195D38

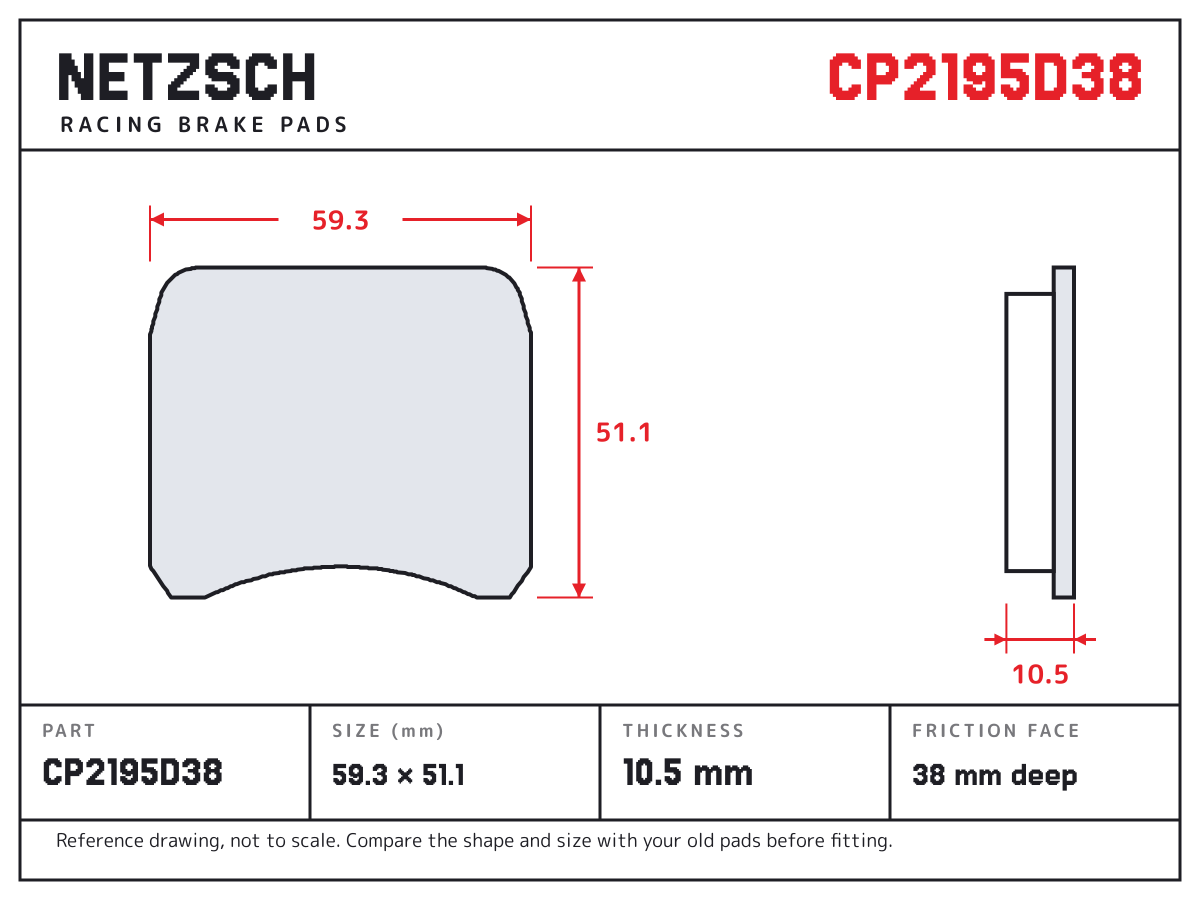

NETZSCH CP2195D38 brake pad drawing: 59.3 × 51.1 mm, 10.5 mm thick

CP2195D38

59.3 x 51.1 x 10.5 mm; AP Racing CP3696; AP Racing CP2696; AP Racing CP2195

Made to the AP Racing CP2195D38 pad shape. Compare the outline and thickness with your old pads.

Pad shape: AP Racing CP2195D38
Axle: Front and rear
Size: 59.3 × 51.1 mm
Thickness: 10.5 mm
Use: Race calipers
Friction face: 38 mm deep

Formula

NE11Original Replacement Series · to 500°CN-oneOriginal Upgrade Series · to 500°CNF42High Performance Street Series · to 600°CNG50High Performance Street Racing · to 800°CNH65High Performance Racetrack Series · to 900°CNH70GT Formula Race Edition · to 1200°C

For carbon-ceramic discs

NC4Carbon Ceramic Entry SeriesNC6Carbon Ceramic Disc Series · to 600°CNC9Carbon Ceramic Race Series

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised

Request price

Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
DeliveryOptions and cost are shown at checkout for your address.
Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

Brand	Caliper	Notes
AP Racing	CP3696	CP2195D38, 10.5 mm
AP Racing	CP2696	CP2195D38, 10.5 mm
AP Racing	CP2195	CP2195D38, 10.5 mm (profile thickness; official table gives pad family CP2195, caliper obsolete/availability unspecified)
AP Racing	CP2505	CP2195D38, 10.5 mm (profile thickness; official table gives pad family CP2195, caliper obsolete/availability unspecified)
AP Racing	CP2600	CP2195D38, 10.5 mm (profile thickness; official table gives pad family CP2195, caliper obsolete/availability unspecified)
AP Racing	CP2601	CP2195D38, 10.5 mm (profile thickness; official table gives pad family CP2195, caliper obsolete/availability unspecified)
AP Racing	CP2735	CP2195D38, 10.5 mm (profile thickness; official table gives pad family CP2195, caliper obsolete/availability unspecified)
AP Racing	CP2770	CP2195D38, 10.5 mm (profile thickness; official table gives pad family CP2195, caliper obsolete/availability unspecified)
AP Racing	CP2966	CP2195D38, 10.5 mm (profile thickness; official table gives pad family CP2195, caliper obsolete/availability unspecified)
AP Racing	CP3629	CP2195D38, 10.5 mm (profile thickness; official table gives pad family CP2195, caliper obsolete/availability unspecified)
AP Racing	CP4648	CP2195D38, 10.5 mm (profile thickness; official table gives pad family CP2195, caliper obsolete/availability unspecified)
AP Racing	CP4649	CP2195D38, 10.5 mm (profile thickness; official table gives pad family CP2195, caliper obsolete/availability unspecified)

Always compare the shape and size with your old pads before you fit them.

Cross references

1 part number from another brand for the same pad shape. Use it to check the fit; it does not mean the pads are the same.

AP Racing: CP2195D38

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.
