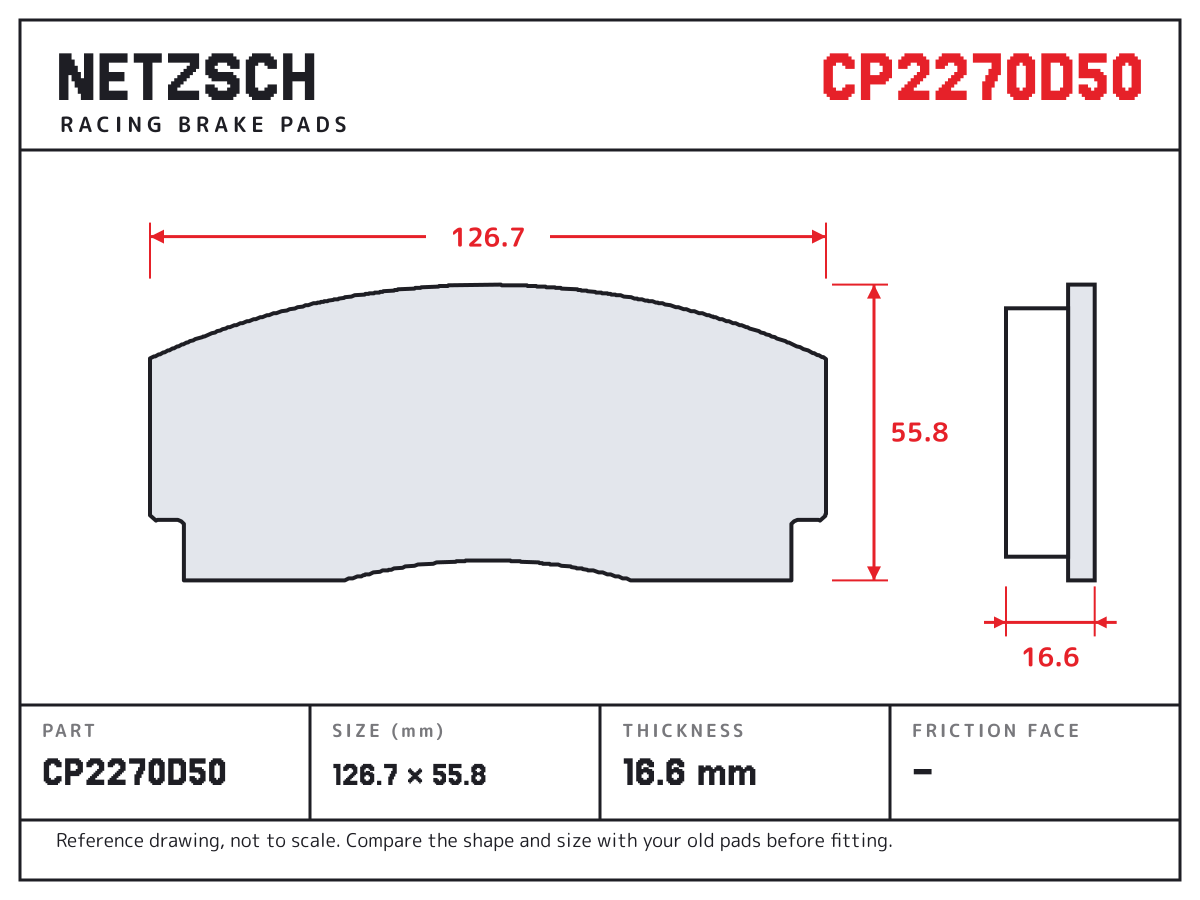

NETZSCH CP2270D50 brake pad drawing: 126.7 × 55.8 mm, 16.6 mm thick
NETZSCH CP2270D50 brake pads in NH65, pixel art
The lab boy dressed for NH65
The NH65 pad box

CP2270D50

126.7 x 55.8 x 16.6 mm; AP Racing CP2425; AP Racing CP2575; AP Racing CP2831

Made to the AP Racing CP2270D50 pad shape. Compare the outline and thickness with your old pads.

Pad shape
AP Racing CP2270D50
Size
126.7 × 55.8 mm
Thickness
16.6 mm
Use
Race calipers
Also known as
Ferodo FRP203
Formula

For carbon-ceramic discs

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised
Request price

  • Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
  • DeliveryOptions and cost are shown at checkout for your address.
  • Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

BrandCaliperNotes
AP RacingCP227016.5 mm; CP2270-144/145
AP RacingCP2425FRP203; CP2425; CP2425
AP RacingCP2575FRP203; CP2575; CP2575
AP RacingCP2831FRP203; CP2831; CP2831
AP RacingCP2876FRP203; CP2876; CP2876
AP RacingCP2986FRP203; CP2986; CP2986
AP RacingCP3008FRP203; CP3008; CP3008
AP RacingCP3009FRP203; CP3009; CP3009
AP RacingCP4270FRP203; CP4270; CP4270

Always compare the shape and size with your old pads before you fit them.

Cross references

7 part numbers from other brands for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Ferodo
FRP203
AP Racing
CP2270D50
Pagid Racing
1269
Winmax
WMP893 · WMP893-16.5-W3 · WMP893-16.5-W5 · WMP893-16.5-W6.5

Winmax WMP893: WinmaX catalogue thicknesses 16.5 mm

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

Nine formulas, one shape

Every NETZSCH formula is made in the CP2270D50 shape: from the quiet NE11 for the commute to NH70 for GT racing. NC4, NC6 and NC9 are for carbon-ceramic discs.

NE11 brake padsNE11Original Replacement Series, to 500°CN-one brake padsN-oneOriginal Upgrade Series, to 500°CNF42 brake padsNF42High Performance Street Series, to 600°CNG50 brake padsNG50High Performance Street Racing, to 800°CNH65 brake padsNH65High Performance Racetrack Series, to 900°CNH70 brake padsNH70GT Formula Race Edition, to 1200°CNC4 brake padsNC4Carbon Ceramic Entry Series · Data coming soonNC6 brake padsNC6Carbon Ceramic Disc Series, to 600°CNC9 brake padsNC9Carbon Ceramic Race Series · Data coming soonThe lab boy with his flaskCompareSeven tested formulas side by side, and the formula battle
