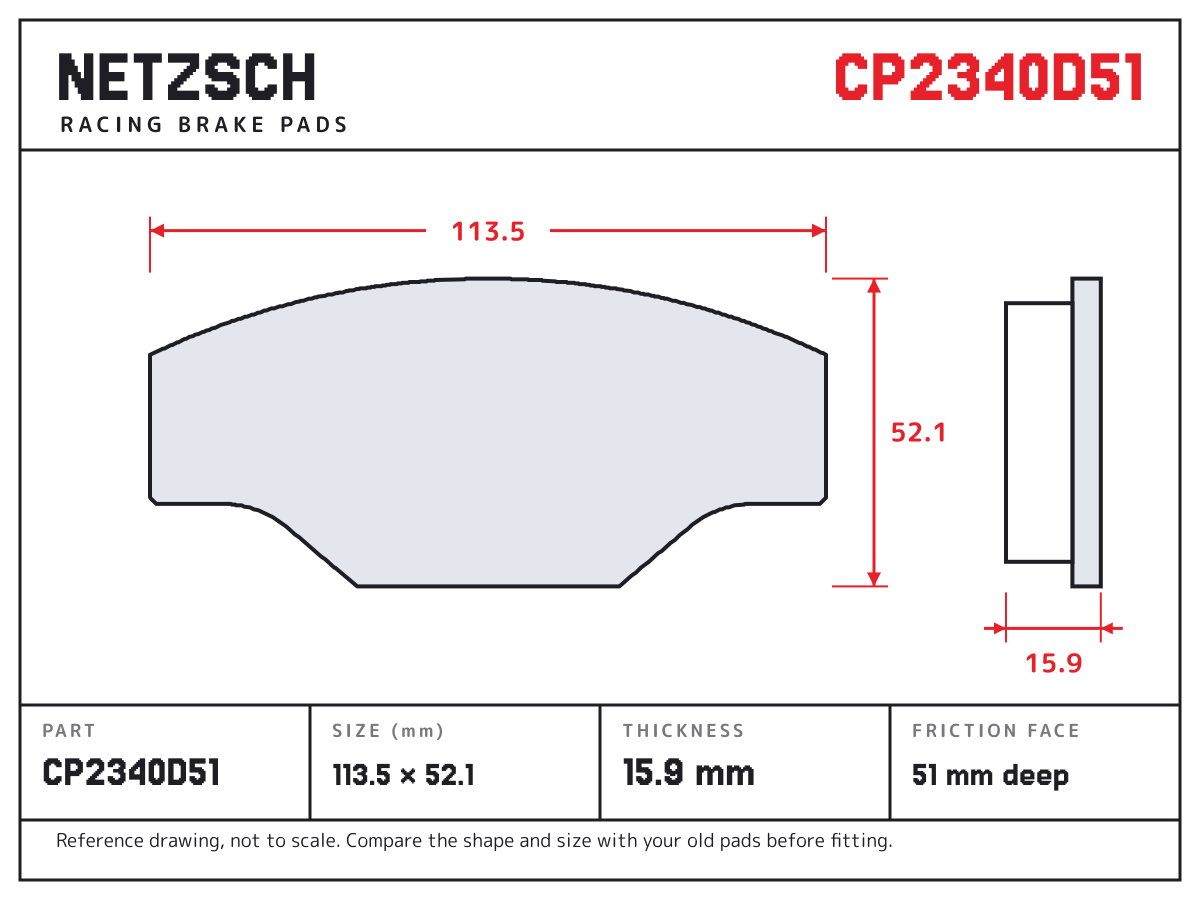

NETZSCH CP2340D51 brake pad drawing: 113.5 × 52.1 mm, 15.9 mm thick

CP2340D51

113.5 x 52.1 x 15.9 mm; AP Racing CP2361

Made to the AP Racing CP2340D51 pad shape. Compare the outline and thickness with your old pads.

Pad shape: AP Racing CP2340D51
Axle: Front and rear
Size: 113.5 × 52.1 mm
Thickness: 15.9 mm
Use: Race calipers
Friction face: 51 mm deep

Formula

NE11Original Replacement Series · to 500°CN-oneOriginal Upgrade Series · to 500°CNF42High Performance Street Series · to 600°CNG50High Performance Street Racing · to 800°CNH65High Performance Racetrack Series · to 900°CNH70GT Formula Race Edition · to 1200°C

For carbon-ceramic discs

NC4Carbon Ceramic Entry SeriesNC6Carbon Ceramic Disc Series · to 600°CNC9Carbon Ceramic Race Series

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised

Request price

Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
DeliveryOptions and cost are shown at checkout for your address.
Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

Brand	Caliper	Notes
AP Racing	CP2361	CP2340D51, 15.9 mm

Always compare the shape and size with your old pads before you fit them.

Cross references

4 part numbers from other brands for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

AP Racing: CP2340D51
Project Mu: F2351
Winmax: WMP892 · WMP892-16-W3

Winmax WMP892: 16 mm

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.
