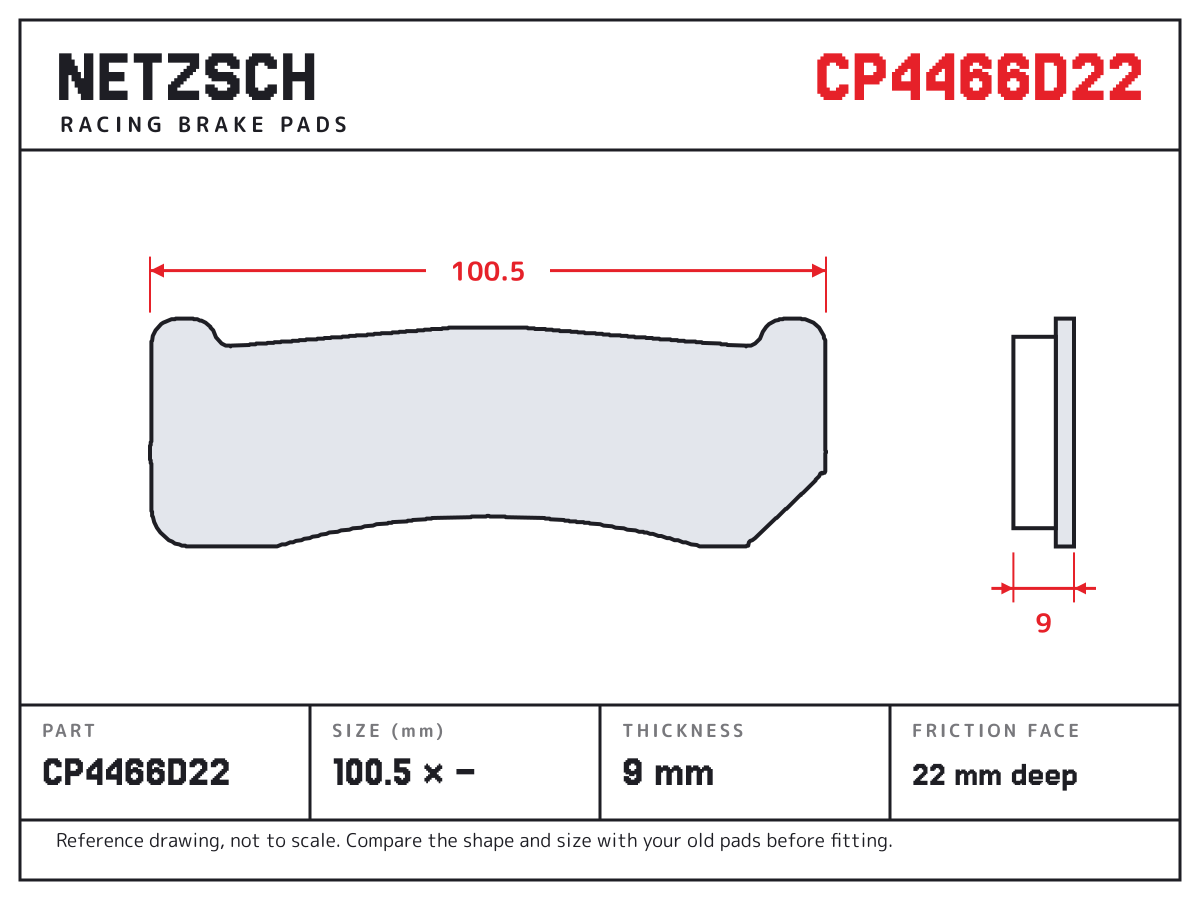

NETZSCH CP4466D22 brake pad drawing: 100.48 × unconfirmed mm, 9 mm thick
NETZSCH CP4466D22 brake pads in NH65, pixel art
The lab boy dressed for NH65
The NH65 pad box

CP4466D22

100.48 x 35.75 x 9 mm; AP Racing CP4166; AP Racing CP4169; AP Racing CP4176

Made to the AP Racing CP4466D22 pad shape. Compare the outline and thickness with your old pads.

Pad shape
AP Racing CP4466D22
Size
100.48 × 35.75 mm
Thickness
9 mm
Use
Race calipers
Friction face
22 mm deep
Formula

For carbon-ceramic discs

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised
Request price

  • Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
  • DeliveryOptions and cost are shown at checkout for your address.
  • Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

BrandCaliperNotes
AP RacingCP4166CP4466D22, 9 mm (profile thickness; official table gives pad family CP4466, caliper obsolete/availability unspecified)
AP RacingCP4169CP4466D22, 9 mm (profile thickness; official table gives pad family CP4466, caliper obsolete/availability unspecified)
AP RacingCP4176CP4466D22, 9 mm (profile thickness; official table gives pad family CP4466, caliper obsolete/availability unspecified)
AP RacingCP4177CP4466D22, 9 mm (profile thickness; official table gives pad family CP4466, caliper obsolete/availability unspecified)
AP RacingCP4466CP4466D22, 9 mm (profile thickness; official table gives pad family CP4466, caliper obsolete/availability unspecified)
AP RacingCP4469CP4466D22, 9 mm (profile thickness; official table gives pad family CP4466, caliper obsolete/availability unspecified)
AP RacingCP4477CP4466D22, 9 mm (profile thickness; official table gives pad family CP4466, caliper obsolete/availability unspecified)
AP RacingCP5566CP4466D22, 9 mm (profile thickness; official table gives pad family CP4466, caliper obsolete/availability unspecified)
AP RacingCP5577CP4466D22, 9 mm (profile thickness; official table gives pad family CP4466, caliper obsolete/availability unspecified)
AP RacingCP5588CP4466D22, 9 mm (profile thickness; official table gives pad family CP4466, caliper obsolete/availability unspecified)

Always compare the shape and size with your old pads before you fit them.

Cross references

1 part number from another brand for the same pad shape. Use it to check the fit; it does not mean the pads are the same.

AP Racing
CP4466D22

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

Nine formulas, one shape

Every NETZSCH formula is made in the CP4466D22 shape: from the quiet NE11 for the commute to NH70 for GT racing. NC4, NC6 and NC9 are for carbon-ceramic discs.

NE11 brake padsNE11Original Replacement Series, to 500°CN-one brake padsN-oneOriginal Upgrade Series, to 500°CNF42 brake padsNF42High Performance Street Series, to 600°CNG50 brake padsNG50High Performance Street Racing, to 800°CNH65 brake padsNH65High Performance Racetrack Series, to 900°CNH70 brake padsNH70GT Formula Race Edition, to 1200°CNC4 brake padsNC4Carbon Ceramic Entry Series · Data coming soonNC6 brake padsNC6Carbon Ceramic Disc Series, to 600°CNC9 brake padsNC9Carbon Ceramic Race Series · Data coming soonThe lab boy with his flaskCompareSeven tested formulas side by side, and the formula battle
