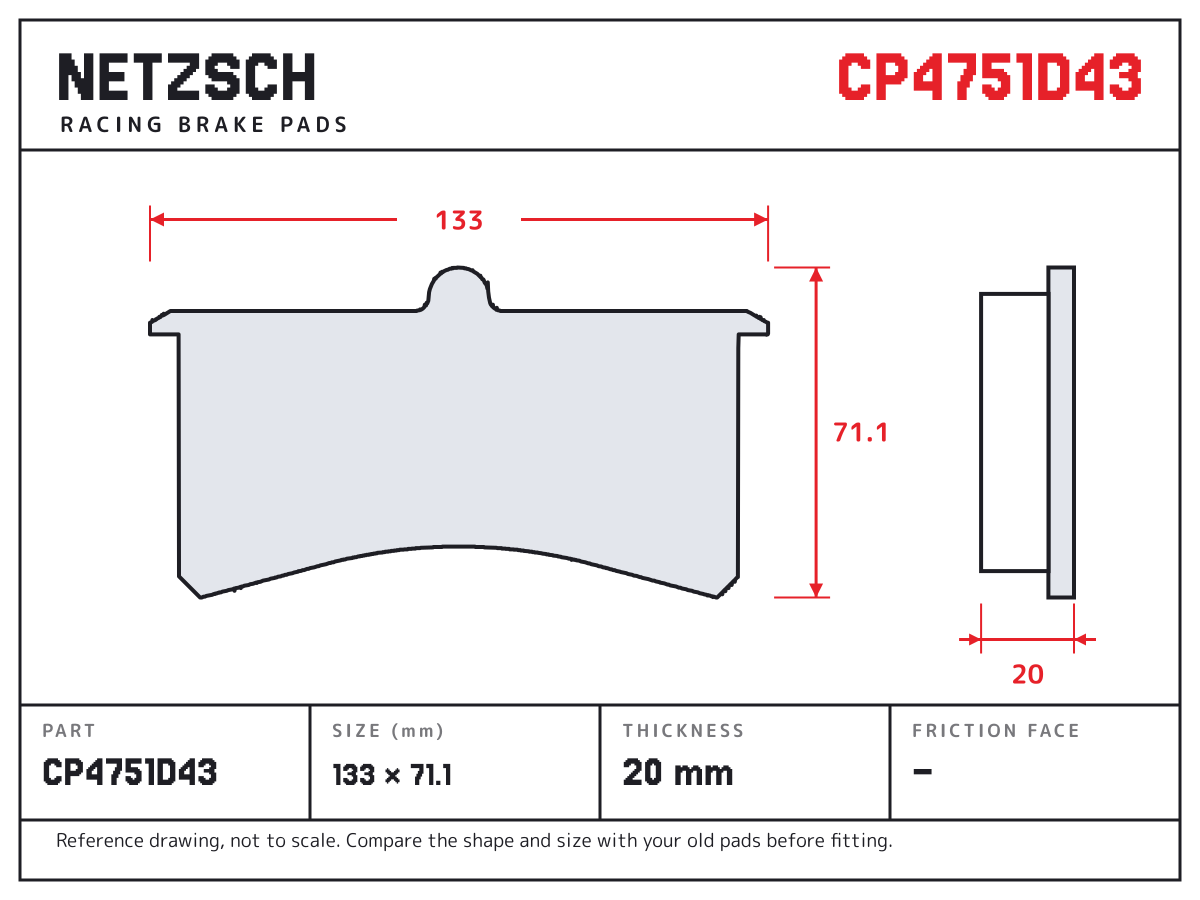

NETZSCH CP4751D43 brake pad drawing: 133 × 71.1 mm, 20 mm thick

CP4751D43

133 x 71.1 x 20 mm; Outlaw 3000 / 3500 / 4000; Wilwood LC-GT; Wilwood SL-GT

Made to the AP Racing CP4751D43 pad shape. Compare the outline and thickness with your old pads.

Pad shape: AP Racing CP4751D43
Size: 133 × 71.1 mm
Thickness: 20 mm
Use: Race calipers
Also known as: Ferodo FRP501 · Mintex 1795

Formula

NE11Original Replacement Series · to 500°CN-oneOriginal Upgrade Series · to 500°CNF42High Performance Street Series · to 600°CNG50High Performance Street Racing · to 800°CNH65High Performance Racetrack Series · to 900°CNH70GT Formula Race Edition · to 1200°C

For carbon-ceramic discs

NC4Carbon Ceramic Entry SeriesNC6Carbon Ceramic Disc Series · to 600°CNC9Carbon Ceramic Race Series

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised

Request price

Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
DeliveryOptions and cost are shown at checkout for your address.
Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

Brand	Caliper	Notes
Outlaw	3000 / 3500 / 4000	FRP501; 3000 / 3500 / 4000 - Th. 20.0mm
Wilwood	LC-GT	FRP501; LC-GT - Th. 20.0mm
Wilwood	SL-GT	FRP501; SL-GT - Th. 20.0mm
Wilwood	Superlite 4	FRP501; Superlite 4 - Th. 20.0mm
Wilwood	Superlite 6	FRP501; Superlite 6 - Th. 20.0mm

Always compare the shape and size with your old pads before you fit them.

Cross references

5 part numbers from other brands for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Ferodo: FRP501
Mintex: 1795
AP Racing: CP4751D43
Hawk: HB101
Pagid Racing: 2555

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

CP4751D43

Fits

Race calipers

Cross references

Nine formulas, one shape
