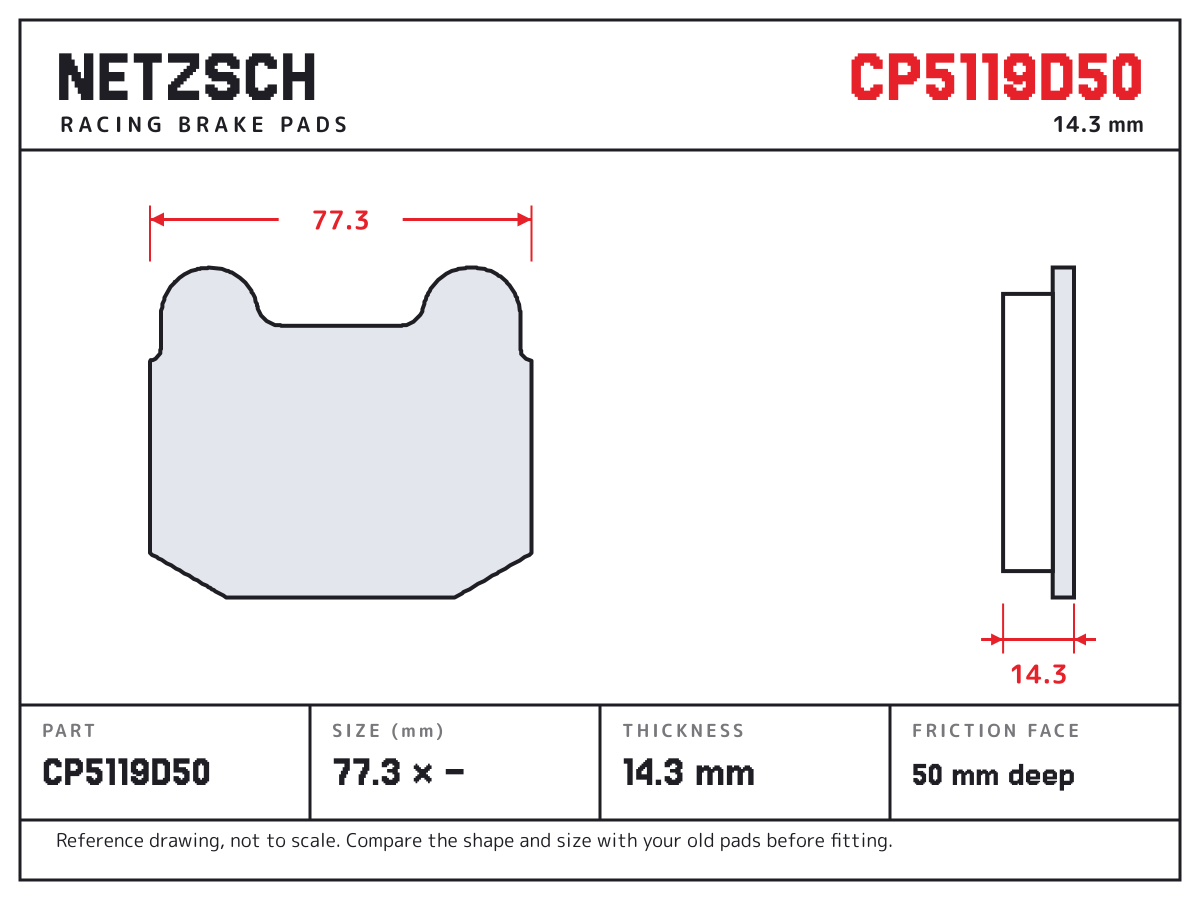

NETZSCH CP5119D50 brake pad drawing: 77.3 × unconfirmed mm, 14.35 mm thick

CP5119D50

77.3 x 60.3 x 14.35 mm; AP Racing CP6120; AP Racing CP6121; AP Racing CP6126

Made to the AP Racing CP5119D50 pad shape. Compare the outline and thickness with your old pads.

Pad shape: AP Racing CP5119D50
Axle: Rear
Size: 77.3 × 60.3 mm
Thickness: 14.35 mm / 16 mm
Use: Race calipers
Friction face: 50 mm deep

Formula

NE11Original Replacement Series · to 500°CN-oneOriginal Upgrade Series · to 500°CNF42High Performance Street Series · to 600°CNG50High Performance Street Racing · to 800°CNH65High Performance Racetrack Series · to 900°CNH70GT Formula Race Edition · to 1200°C

For carbon-ceramic discs

NC4Carbon Ceramic Entry SeriesNC6Carbon Ceramic Disc Series · to 600°CNC9Carbon Ceramic Race Series

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised

Request price

Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
DeliveryOptions and cost are shown at checkout for your address.
Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

Brand	Caliper	Notes
AP Racing	CP6120	CP5119D50, 14.3 mm
AP Racing	CP6121	CP5119D50, 14.3 mm
AP Racing	CP6126	CP5119D50, 14.3 mm
AP Racing	CP5316	CP5119D50, 16 mm; catalogue feature block prints 16 mm, profile 14.35 mm
AP Racing	CP5317	CP5119D50, 16 mm; catalogue feature block prints 16 mm, profile 14.35 mm
AP Racing	CP5235	CP5119D50, 14.35 mm (profile thickness; official table gives pad family CP5119, caliper obsolete/availability unspecified)
AP Racing	CP6114	CP5119D50, 14.35 mm (profile thickness; official table gives pad family CP5119, caliper obsolete/availability unspecified)
AP Racing	CP6119	CP5119D50, 14.35 mm (profile thickness; official table gives pad family CP5119, caliper obsolete/availability unspecified)

Always compare the shape and size with your old pads before you fit them.

Cross references

1 part number from another brand for the same pad shape. Use it to check the fit; it does not mean the pads are the same.

AP Racing: CP5119D50

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.
