Store / Pads / FRP3148

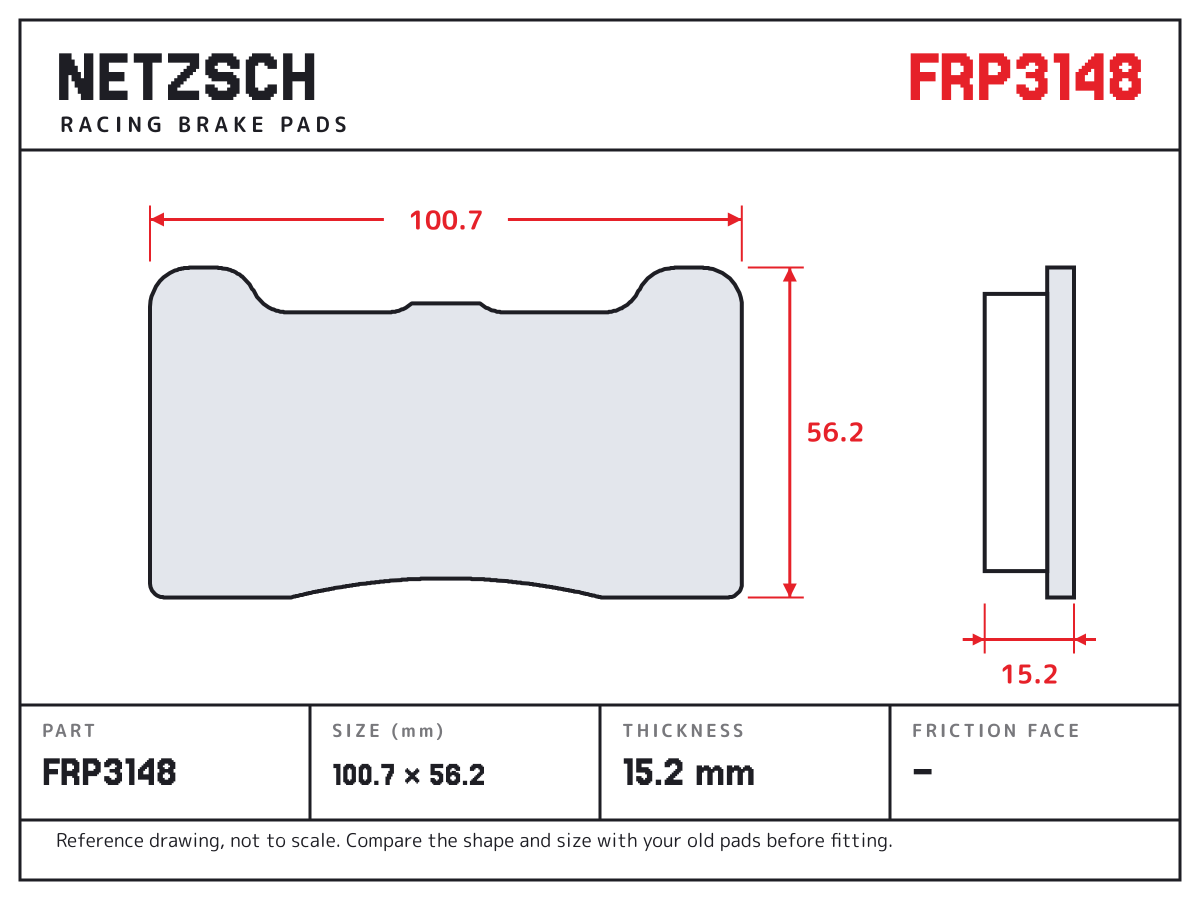

NETZSCH FRP3148 brake pad drawing: 100.7 × 56.2 mm, 15.2 mm thick
NETZSCH FRP3148 brake pads in NH65, pixel art
The lab boy dressed for NH65
The NH65 pad box

FRP3148

100.7 x 56.2 x 15.2 mm; Wilwood Billet Narrow Dynalite Radial Mount (7816); Wilwood Billet Narrow Mount DynaPro (7816)

Made to the Ferodo FRP3148 pad shape. Compare the outline and thickness with your old pads.

Pad shape
Ferodo FRP3148
Size
100.7 × 56.2 mm
Thickness
15.2 mm
Use
Race calipers
Also known as
Ferodo FRP3148
Formula

For carbon-ceramic discs

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised
Request price

  • Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
  • DeliveryOptions and cost are shown at checkout for your address.
  • Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

BrandCaliperNotes
WilwoodBillet Narrow Dynalite Radial Mount (7816)FRP3148; Billet Narrow Dynalite Radial Mount (7816)
WilwoodBillet Narrow Mount DynaPro (7816)FRP3148; Billet Narrow Mount DynaPro (7816)
WilwoodDynaPro Forged Billet Radial Mount (7816)FRP3148; DynaPro Forged Billet Radial Mount (7816)
WilwoodForged Narrow Dynalite Lug Mount (7816)FRP3148; Forged Narrow Dynalite Lug Mount (7816)

Always compare the shape and size with your old pads before you fit them.

Cross references

2 part numbers from other brands for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Ferodo
FRP3148
Pagid Racing
2581USA

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

Nine formulas, one shape

Every NETZSCH formula is made in the FRP3148 shape: from the quiet NE11 for the commute to NH70 for GT racing. NC4, NC6 and NC9 are for carbon-ceramic discs.

NE11 brake padsNE11Original Replacement Series, to 500°CN-one brake padsN-oneOriginal Upgrade Series, to 500°CNF42 brake padsNF42High Performance Street Series, to 600°CNG50 brake padsNG50High Performance Street Racing, to 800°CNH65 brake padsNH65High Performance Racetrack Series, to 900°CNH70 brake padsNH70GT Formula Race Edition, to 1200°CNC4 brake padsNC4Carbon Ceramic Entry Series · Data coming soonNC6 brake padsNC6Carbon Ceramic Disc Series, to 600°CNC9 brake padsNC9Carbon Ceramic Race Series · Data coming soonThe lab boy with his flaskCompareSeven tested formulas side by side, and the formula battle
