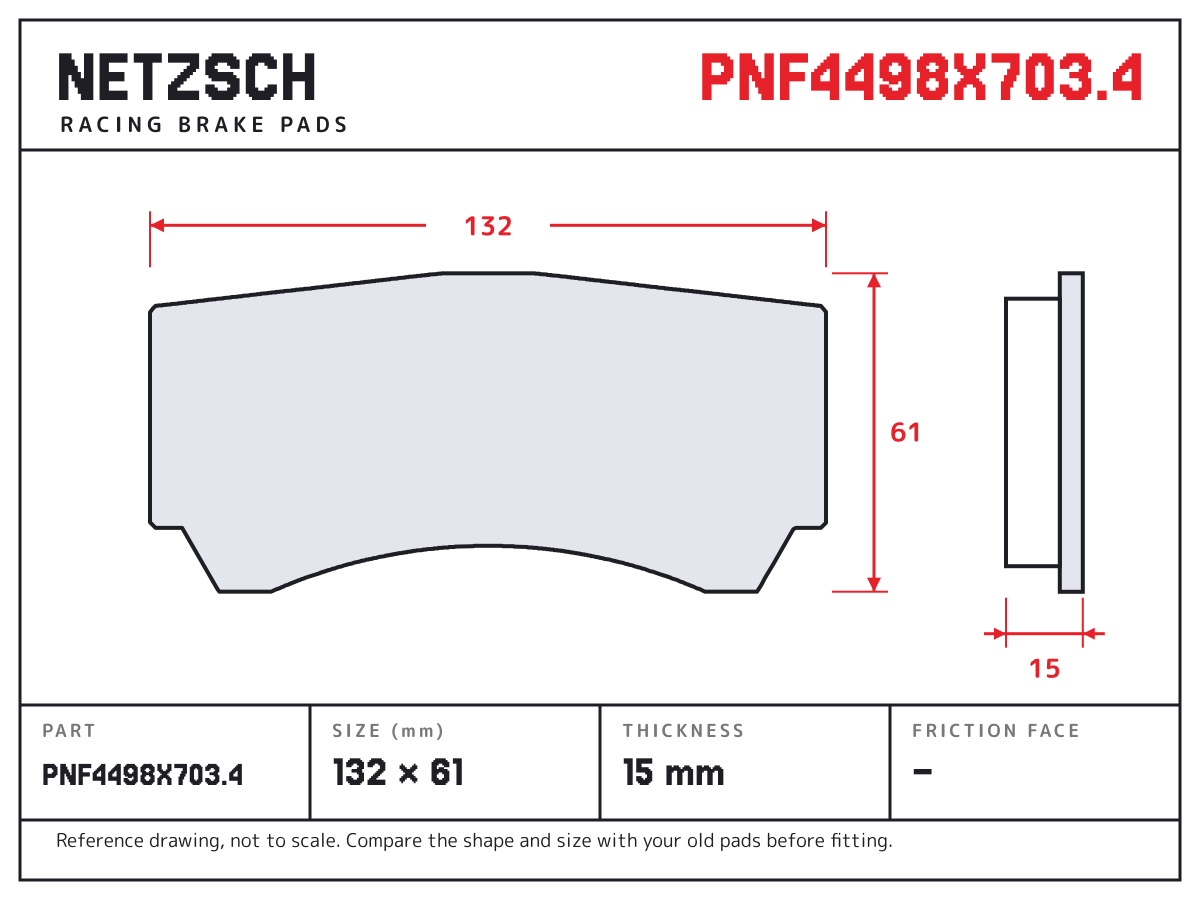

NETZSCH PNF4498X703.4 brake pad drawing: 132 × 61 mm, 15 mm thick

PNF4498X703.4

132 x 61 x 15 mm; Alcon PNF4498x603 - Monoblock 4

Made to the Alcon PNF4498X703.4 pad shape. Compare the outline and thickness with your old pads.

Pad shape: Alcon PNF4498X703.4
Size: 132 × 61 mm
Thickness: 15 mm
Use: Race calipers
Also known as: Ferodo FRP3082

Formula

NE11Original Replacement Series · to 500°CN-oneOriginal Upgrade Series · to 500°CNF42High Performance Street Series · to 600°CNG50High Performance Street Racing · to 800°CNH65High Performance Racetrack Series · to 900°CNH70GT Formula Race Edition · to 1200°C

For carbon-ceramic discs

NC4Carbon Ceramic Entry SeriesNC6Carbon Ceramic Disc Series · to 600°CNC9Carbon Ceramic Race Series

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised

Request price

Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
DeliveryOptions and cost are shown at checkout for your address.
Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

Brand	Caliper	Notes
Alcon	PNF4498x603 - Monoblock 4	FRP3082; PNF4498x603 - Monoblock 4 - Th. 15mm

Always compare the shape and size with your old pads before you fit them.

Cross references

4 part numbers from other brands for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Ferodo: FRP3082
Alcon: PNF4498X703.4 · PNF4498X705.4
Pagid Racing: 8050

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

PNF4498X703.4

Fits

Race calipers

Cross references

Nine formulas, one shape
