Store / Pads / B12

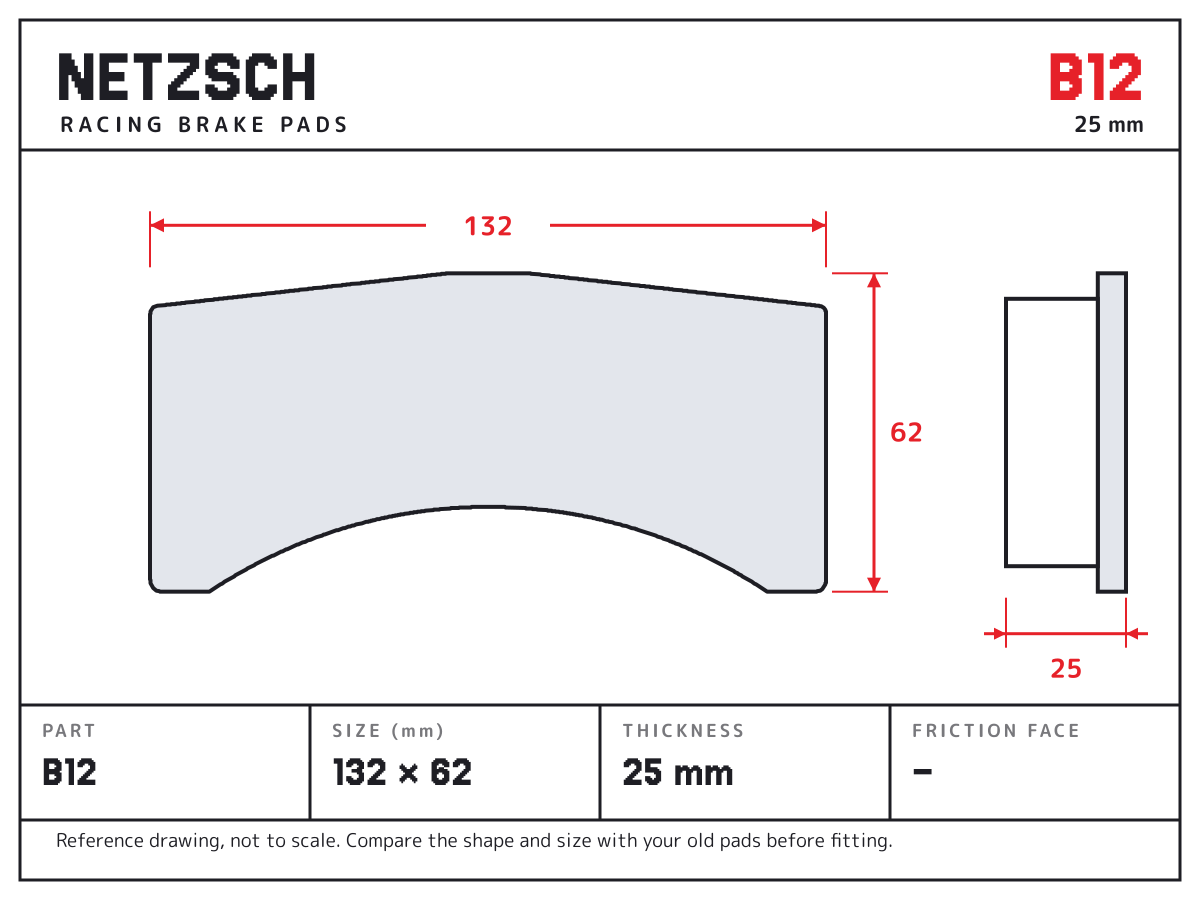

NETZSCH B12 brake pad drawing: 132 × 62 mm, 25 mm thick
NETZSCH B12 brake pads in NH65, pixel art
The lab boy dressed for NH65
The NH65 pad box

B12

132 x 62 x 25 mm; Brembo XA13711/12; Brembo XA74613/14; Brembo XA95823/24

Made to the Brembo B12 pad shape. Compare the outline and thickness with your old pads.

Pad shape
Brembo B12
Size
132 × 62 mm
Thickness
25 mm / 18 mm
Use
Race calipers
Also known as
Brembo B12
Formula

For carbon-ceramic discs

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised
Request price

  • Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
  • DeliveryOptions and cost are shown at checkout for your address.
  • Before fittingCompare the drawing, size and thickness with the pads you remove.

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

BrandCaliperNotes
BremboXA13711/12B12; XA13711/12 (18mm)
BremboXA74613/14B12; XA74613/14 (≤25mm)
BremboXA95823/24B12; XA95823/24 (25mm)
BremboXA95833/34B12; XA95833/34 (25mm)
BremboXA9.58.23/24B12; max pad 25 mm; 4 piston; Nascar
BremboXA9.58.33/34B12; max pad 25 mm; 4 piston; Nascar

Always compare the shape and size with your old pads before you fit them.

Cross references

7 part numbers from another brand for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Brembo
B12 · B12.25.330 · 147.A469.G4 · B12.25.340 · 147.A469.G5 · B12.25.360 · 147.A469.G6

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

Nine formulas, one shape

Every NETZSCH formula is made in the B12 shape: from the quiet NE11 for the commute to NH70 for GT racing. NC4, NC6 and NC9 are for carbon-ceramic discs.

NE11 brake padsNE11Original Replacement Series, to 500°CN-one brake padsN-oneOriginal Upgrade Series, to 500°CNF42 brake padsNF42High Performance Street Series, to 600°CNG50 brake padsNG50High Performance Street Racing, to 800°CNH65 brake padsNH65High Performance Racetrack Series, to 900°CNH70 brake padsNH70GT Formula Race Edition, to 1200°CNC4 brake padsNC4Carbon Ceramic Entry Series · Data coming soonNC6 brake padsNC6Carbon Ceramic Disc Series, to 600°CNC9 brake padsNC9Carbon Ceramic Race Series · Data coming soonThe lab boy with his flaskCompareSeven tested formulas side by side, and the formula battle
