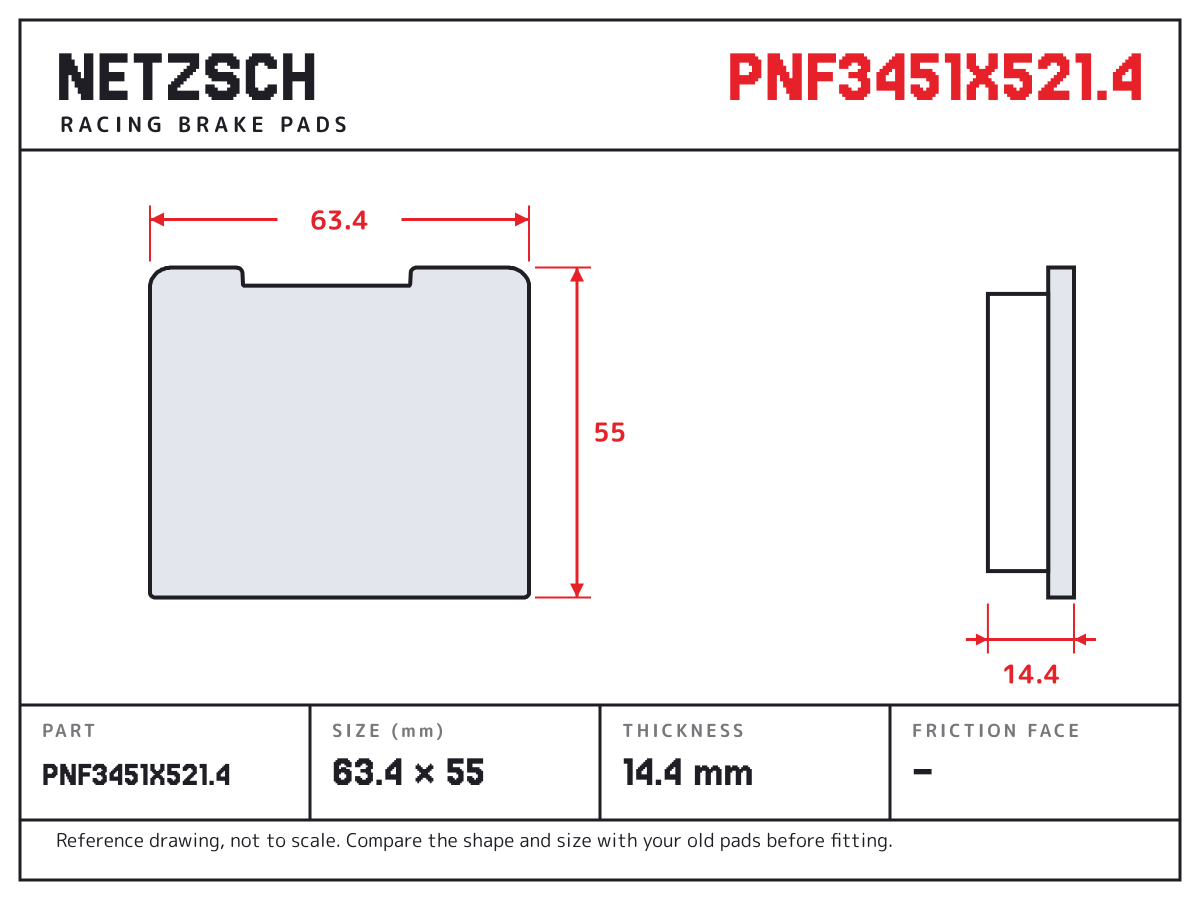

NETZSCH PNF3451X521.4 brake pad drawing: 63.4 × 55 mm, 14.4 mm thick
NETZSCH PNF3451X521.4 brake pads in NH65, pixel art
The lab boy dressed for NH65
The NH65 pad box

PNF3451X521.4

63.4 x 55 x 14.4 mm; Alcon R type; Lucas Girling 14LF & D14R

Made to the Alcon PNF3451X521.4 pad shape. Compare the outline and thickness with your old pads.

Pad shape
Alcon PNF3451X521.4
Size
63.4 × 55 mm
Thickness
14.4 mm
Use
Race calipers
Also known as
Ferodo FCP809 · Mintex MGB533
Formula

For carbon-ceramic discs

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised
Request price

  • Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
  • DeliveryOptions and cost are shown at checkout for your address.
  • Before fittingCompare the drawing, size and thickness with the pads you remove.

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

BrandCaliperNotes
AlconR typeFCP809; R type - Th. 14.4mm
Lucas Girling14LF & D14RFCP809; 14LF & D14R

Always compare the shape and size with your old pads before you fit them.

Cross references

8 part numbers from other brands for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Ferodo
FCP809
Mintex
MDB1723 · MGB533
Alcon
PNF3451X521.4 · PNF3451X555.4
Hawk
HB118
Pagid Racing
3102
PFC
0044

Hawk HB118: Original table entry HB118 0,56

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

Nine formulas, one shape

Every NETZSCH formula is made in the PNF3451X521.4 shape: from the quiet NE11 for the commute to NH70 for GT racing. NC4, NC6 and NC9 are for carbon-ceramic discs.

NE11 brake padsNE11Original Replacement Series, to 500°CN-one brake padsN-oneOriginal Upgrade Series, to 500°CNF42 brake padsNF42High Performance Street Series, to 600°CNG50 brake padsNG50High Performance Street Racing, to 800°CNH65 brake padsNH65High Performance Racetrack Series, to 900°CNH70 brake padsNH70GT Formula Race Edition, to 1200°CNC4 brake padsNC4Carbon Ceramic Entry Series · Data coming soonNC6 brake padsNC6Carbon Ceramic Disc Series, to 600°CNC9 brake padsNC9Carbon Ceramic Race Series · Data coming soonThe lab boy with his flaskCompareSeven tested formulas side by side, and the formula battle
