Store / Pads / PNF3451X522

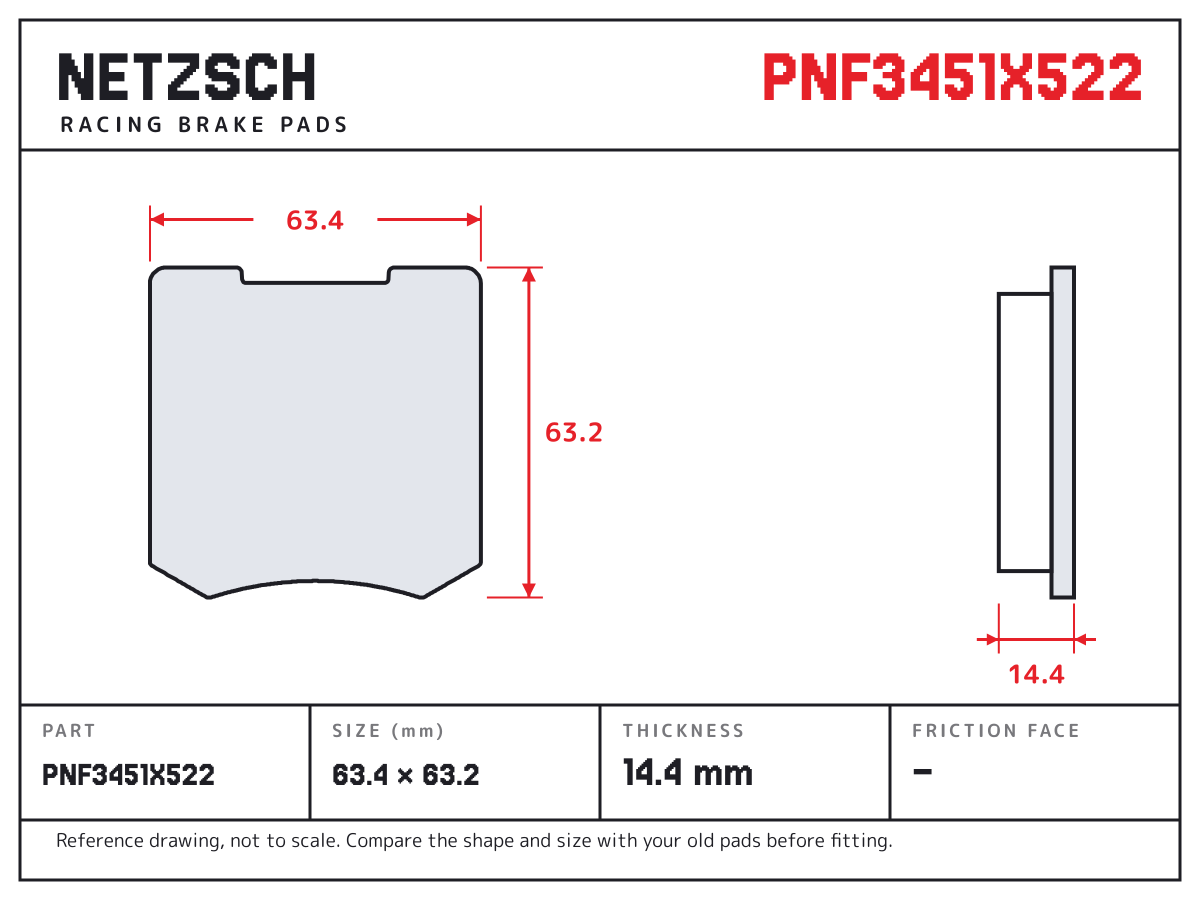

NETZSCH PNF3451X522 brake pad drawing: 63.4 × 63.2 mm, 14.4 mm thick

PNF3451X522

63.4 x 63.2 x 14.4 mm; Alcon R type

Made to the Alcon PNF3451X522 pad shape. Compare the outline and thickness with your old pads.

Pad shape: Alcon PNF3451X522
Size: 63.4 × 63.2 mm
Thickness: 14.4 mm
Use: Race calipers
Also known as: Ferodo FCP810 · Mintex MGB535

Formula

NE11Original Replacement Series · to 500°CN-oneOriginal Upgrade Series · to 500°CNF42High Performance Street Series · to 600°CNG50High Performance Street Racing · to 800°CNH65High Performance Racetrack Series · to 900°CNH70GT Formula Race Edition · to 1200°C

For carbon-ceramic discs

NC4Carbon Ceramic Entry SeriesNC6Carbon Ceramic Disc Series · to 600°CNC9Carbon Ceramic Race Series

NH65: High Performance Racetrack Series, rated to 900°C. About NH65

Price on requestRetail prices are being finalised

Request price

Price and stockLoaded from the store for the selected formula; ask us if no price is shown.
DeliveryOptions and cost are shown at checkout for your address.
Before fittingCompare the drawing, size and thickness with the pads you remove.

Shipping · Returns · Warranty

Not sure this is your shape? Use the part finder or ask support.

Fits

Race calipers

Brand	Caliper	Notes
Alcon	R type	FCP810; R type - Th. 14.4mm

Always compare the shape and size with your old pads before you fit them.

Cross references

8 part numbers from other brands for the same pad shape. Use them to check the fit; they do not mean the pads are the same.

Ferodo: FCP810
Mintex: MGB535
Alcon: PNF3451X522 · PNF3451X522.4 · PNF3451X554.4 · PNF3451X566.4
Pagid Racing: 3190
PFC: 0051

Missing the number from your old pads? Send it to sales@netzschracing.com and we will check it.

PNF3451X522

Fits

Race calipers

Cross references

Nine formulas, one shape
